| Part Number | LS1043ASN8PQB | LS1043ASN8QQB | LS1043AXN8PQB | LS1023ASN8PQB | LS1043ASN7PQB | LS1043ASN8KQB | LS1043ASN8MQB |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-A53 | ARM® Cortex®-A53 | ARM® Cortex®-A53 | ARM® Cortex®-A53 | ARM® Cortex®-A53 | ARM® Cortex®-A53 | ARM® Cortex®-A53 |
| Number of Cores/Bus Width | 4 Core, 64-Bit | 4 Core, 64-Bit | 4 Core, 64-Bit | 2 Core, 64-Bit | 4 Core, 64-Bit | 4 Core, 64-Bit | 4 Core, 64-Bit |
| Speed | 1.4GHz | 1.6GHz | 1.4GHz | 1.4GHz | 1.4GHz | 1.0GHz | 1.2GHz |
| Co-Processors/DSP | - | - | - | - | - | - | - |
| RAM Controllers | DDR3L, DDR4 | DDR3L, DDR4 | DDR3L, DDR4 | DDR3L, DDR4 | DDR3L, DDR4 | DDR3L, DDR4 | DDR3L, DDR4 |
| Graphics Acceleration | - | - | - | - | - | - | - |
| Display & Interface Controllers | - | - | - | - | - | - | - |
| Ethernet | 1GbE (7) or 10GbE (1) & 1GbE (5) | 1GbE (7) or 10GbE (1) & 1GbE (5) | 1GbE (7) or 10GbE (1) & 1GbE (5) | 1GbE (7) or 10GbE (1) & 1GbE (5) | 1GbE (7) or 10GbE (1) & 1GbE (5) | 1GbE (7) or 10GbE (1) & 1GbE (5) | 1GbE (7) or 10GbE (1) & 1GbE (5) |
| SATA | SATA 6Gbps (1) | SATA 6Gbps (1) | SATA 6Gbps (1) | SATA 6Gbps (1) | SATA 6Gbps (1) | SATA 6Gbps (1) | SATA 6Gbps (1) |
| USB | USB 3.0 (3) + PHY | USB 3.0 (3) + PHY | USB 3.0 (3) + PHY | USB 3.0 (2) + PHY | USB 3.0 (3) + PHY | USB 3.0 (3) + PHY | USB 3.0 (3) + PHY |
| Voltage - I/O | - | - | - | - | - | - | - |
| Operating Temperature | 0°C ~ 105°C | 0°C ~ 105°C | -40°C ~ 105°C | 0°C ~ 105°C | 0°C ~ 105°C | 0°C ~ 105°C | 0°C ~ 105°C |
| Security Features | Secure Boot, TrustZone® | Secure Boot, TrustZone® | Secure Boot, TrustZone® | Secure Boot, TrustZone® | Secure Boot, TrustZone® | Secure Boot, TrustZone® | Secure Boot, TrustZone® |

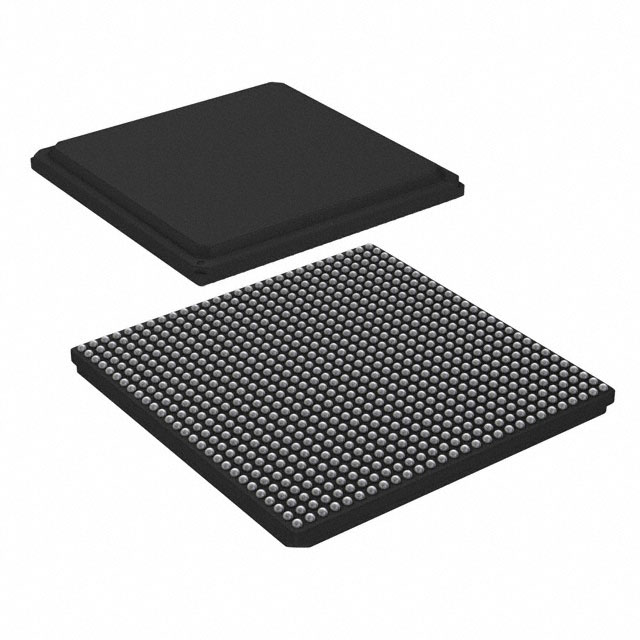

| Package / Case | 780-FBGA, FCBGA | 780-FBGA, FCBGA | 780-FBGA, FCBGA | 780-FBGA, FCBGA | 621-FBGA, FCBGA | 780-FBGA, FCBGA | 780-FBGA, FCBGA |
| Supplier Device Package | 780-FCPBGA (23x23) | 780-FCPBGA (23x23) | 780-FCPBGA (23x23) | 780-FCPBGA (23x23) | 621-FCPBGA (21x21) | 780-FCPBGA (23x23) | 780-FCPBGA (23x23) |
