Please send RFQ , we will respond immediately.
| Part Number | LS1026AXN8Q1A | LS1046AXN8Q1A | LS1026AXN8T1A | LS1026ASN8Q1A | LS1026AXE8Q1A | LS1026AXN8P1A |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-A72 | ARM® Cortex®-A72 | ARM® Cortex®-A72 | ARM® Cortex®-A72 | ARM® Cortex®-A72 | ARM® Cortex®-A72 |
| Number of Cores/Bus Width | 2 Core, 64-Bit | 4 Core, 64-Bit | 2 Core, 64-Bit | 2 Core, 64-Bit | 2 Core, 64-Bit | 2 Core, 64-Bit |
| Speed | 1.6GHz | 1.6GHz | 1.8GHz | 1.6GHz | 1.6GHz | 1.4GHz |
| Co-Processors/DSP | - | - | - | - | - | - |
| RAM Controllers | DDR4 | DDR4 | DDR4 | DDR4 | DDR4 | DDR4 |
| Graphics Acceleration | - | - | - | - | - | - |
| Display & Interface Controllers | - | - | - | - | - | - |
| Ethernet | 10GbE (2), 2.5GbE (1), 1GbE (4) | 10GbE (2), 2.5GbE (1), 1GbE (4) | 10GbE (2), 2.5GbE (1), 1GbE (4) | 10GbE (2), 2.5GbE (1), 1GbE (4) | 10GbE (2), 2.5GbE (1), 1GbE (4) | 10GbE (2), 2.5GbE (1), 1GbE (4) |
| SATA | SATA 6Gbps (1) | SATA 6Gbps (1) | SATA 6Gbps (1) | SATA 6Gbps (1) | SATA 6Gbps (1) | SATA 6Gbps (1) |
| USB | USB 3.0 (3) + PHY | USB 3.0 (3) + PHY | USB 3.0 (3) + PHY | USB 3.0 (3) + PHY | USB 3.0 (3) + PHY | USB 3.0 (3) + PHY |
| Voltage - I/O | - | - | - | - | - | - |
| Operating Temperature | -40°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C | 0°C ~ 105°C | -40°C ~ 105°C | -40°C ~ 105°C |
| Security Features | Secure Boot, TrustZone® | Secure Boot, TrustZone® | Secure Boot, TrustZone® | Secure Boot, TrustZone® | Secure Boot, TrustZone® | Secure Boot, TrustZone® |

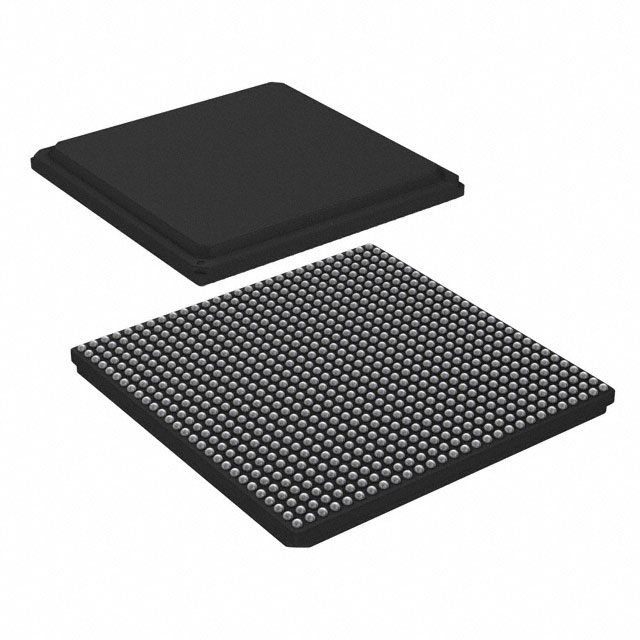

| Package / Case | 780-FBGA, FCBGA | 780-FBGA, FCBGA | 780-FBGA, FCBGA | 780-FBGA, FCBGA | 780-FBGA, FCBGA | 780-FBGA, FCBGA |
| Supplier Device Package | 780-FCPBGA (23x23) | 780-FCPBGA (23x23) | 780-FCPBGA (23x23) | 780-FCPBGA (23x23) | 780-FCPBGA (23x23) | 780-FCPBGA (23x23) |
