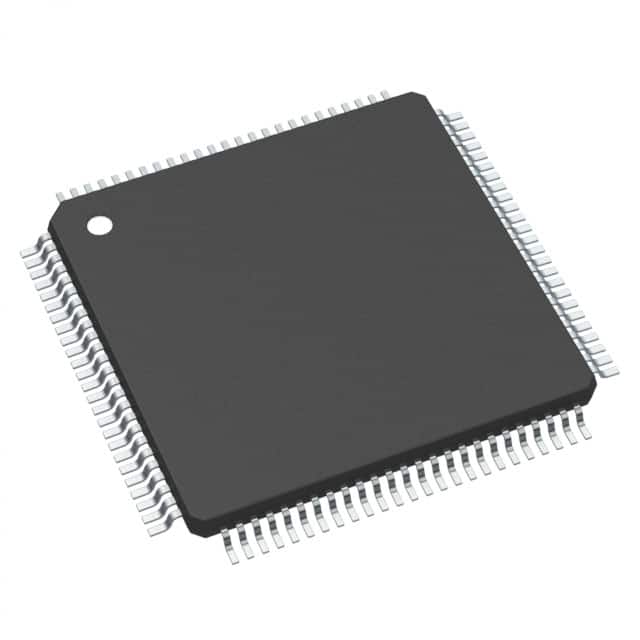

| Part Number | LPC5536JBD100K | LPC5526JBD100K | LPC5534JBD100K | LPC5536JBD100E |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M33 | ARM® Cortex®-M33 | ARM® Cortex®-M33 | ARM® Cortex®-M33 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 150MHz | 150MHz | 150MHz | 150MHz |
| Connectivity | CANbus, Flexcomm, I²C, I²S, I³C, SPI, UART/USART, USB2.0 | Flexcomm, I²C, MMC/SD/SDIO, SPI, UART/USART, USB | CANbus, Flexcomm, I²C, I²S, I³C, SPI, UART/USART, USB2.0 | CANbus, Flexcomm, I²C, I²S, I³C, SPI, UART/USART, USB2.0 |
| Peripherals | DMA, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | DMA, PWM, WDT | DMA, PWM, WDT |
| Number of I/O | 66 | 64 | 66 | 66 |
| Program Memory Size | 256KB (256K x 8) | 256KB (256K x 8) | 128KB (128K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - |
| RAM Size | 128K x 8 | 144K x 8 | 96K x 8 | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V | 1.8V ~ 3.6V |
| Data Converters | A/D 23x16b; D/A 2x12b | A/D 10x16b | A/D 23x16b; D/A 2x12b | A/D 23x16b; D/A 2x12b |
| Oscillator Type | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-LQFP | 100-LQFP Exposed Pad | 100-LQFP | 100-LQFP |
| Supplier Device Package | 100-HLQFP (14x14) | 100-HLQFP (14x14) | 100-HLQFP (14x14) | 100-HLQFP (14x14) |
