Please send RFQ , we will respond immediately.

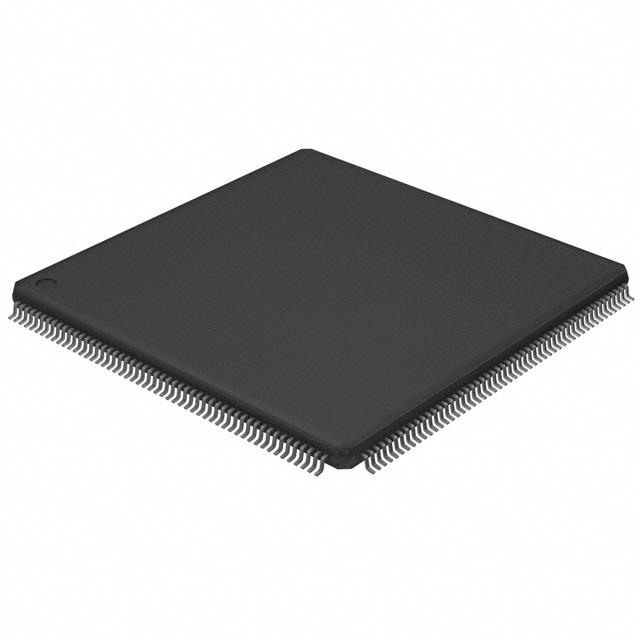

| Part Number | LPC54608J512BD208K | LPC54606J512BD208K | LPC54608J512BD208E |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Discontinued at Digi-Key |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 180MHz | 180MHz | 180MHz |
| Connectivity | CANbus, Ethernet, I²C, SPI, UART/USART, USB | CANbus, Ethernet, I²C, SPI, UART/USART, USB | CANbus, Ethernet, I²C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT |
| Number of I/O | 171 | 171 | 171 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash |
| EEPROM Size | 16K x 8 | 16K x 8 | 16K x 8 |
| RAM Size | 200K x 8 | 200K x 8 | 200K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b SAR | A/D 12x12b SAR | A/D 12x12b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 208-LQFP | 208-LQFP | 208-LQFP |
| Supplier Device Package | 208-LQFP (28x28) | 208-LQFP (28x28) | 208-LQFP (28x28) |
