| Part Number | LPC54605J512ET180E | LPC54608J512ET180E | LPC54607J512ET180E | LPC54605J512ET180K | LPC54605J512ET100E |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Discontinued at Digi-Key | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 180MHz | 180MHz | 180MHz | 180MHz | 180MHz |
| Connectivity | I²C, SPI, UART/USART, USB | CANbus, Ethernet, I²C, SPI, UART/USART, USB | I²C, SPI, UART/USART, USB | I²C, SPI, UART/USART, USB | I²C, SPI, UART/USART, USB |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 145 | 145 | 145 | 145 | 64 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 |
| RAM Size | 200K x 8 | 200K x 8 | 200K x 8 | 200K x 8 | 200K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 12x12b | A/D 12x12b | A/D 12x12b | A/D 12x12b | A/D 12x12b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

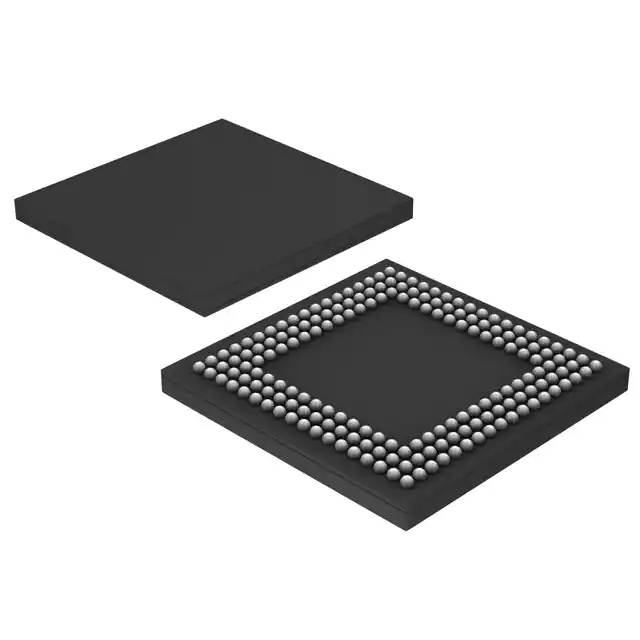

| Package / Case | 180-TFBGA | 180-TFBGA | 180-TFBGA | 180-TFBGA | 100-TFBGA |
| Supplier Device Package | 180-TFBGA (12x12) | 180-TFBGA (12x12) | 180-TFBGA (12x12) | 180-TFBGA (12x12) | 100-TFBGA (9x9) |
