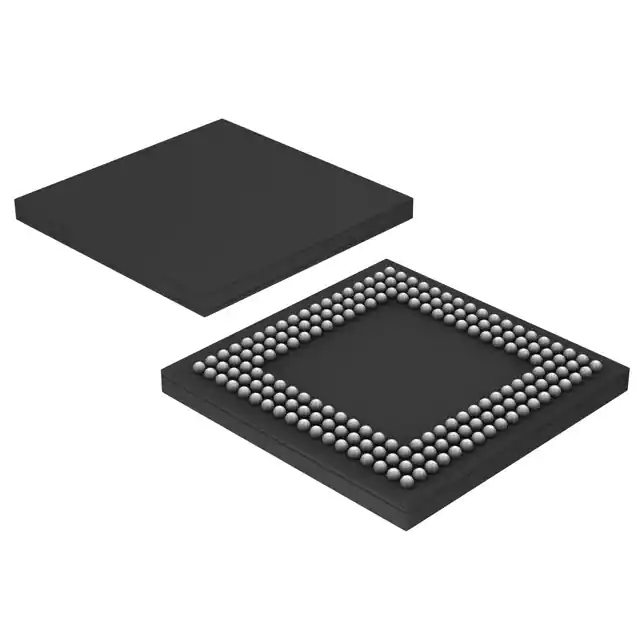

| Part Number | LPC4330FET180,551 | LPC4350FET180,551 | LPC4330FET100,551 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active |
| Core Processor | ARM® Cortex®-M4/M0 | ARM® Cortex®-M4/M0 | ARM® Cortex®-M4/M0 |
| Core Size | 32-Bit Dual-Core | 32-Bit Dual-Core | 32-Bit Dual-Core |
| Speed | 204MHz | 204MHz | 204MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I²C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT |
| Number of I/O | 118 | 118 | 49 |
| Program Memory Size | - | - | - |
| Program Memory Type | ROMless | ROMless | ROMless |
| EEPROM Size | - | - | - |
| RAM Size | 264K x 8 | 264K x 8 | 264K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V | 2.2V ~ 3.6V | 2.2V ~ 3.6V |
| Data Converters | A/D 8x10b; D/A 1x10b | A/D 8x10b; D/A 1x10b | A/D 4x10b; D/A 1x10b |
| Oscillator Type | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 180-TFBGA | 180-TFBGA | 100-TFBGA |
| Supplier Device Package | 180-TFBGA (12x12) | 180-TFBGA (12x12) | 100-TFBGA (9x9) |
