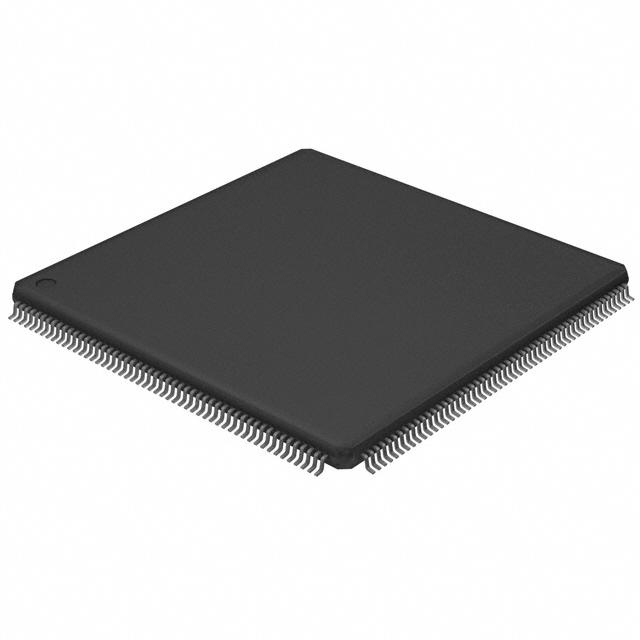

| Part Number | LPC2930FBD208,551 | LPC2939FBD208,551 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Not For New Designs | Not For New Designs |
| Core Processor | ARM968E-S | ARM9® |
| Core Size | 16/32-Bit | 16/32-Bit |
| Speed | 125MHz | 125MHz |
| Connectivity | CANbus, EBI/EMI, I²C, LINbus, SPI, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, LINbus, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, POR, PWM, WDT | DMA, POR, PWM, WDT |
| Number of I/O | 152 | 152 |
| Program Memory Size | - | 768KB (768K x 8) |
| Program Memory Type | ROMless | Flash |
| EEPROM Size | - | 16K x 8 |
| RAM Size | 56K x 8 | 56K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V | 1.71V ~ 3.6V |
| Data Converters | A/D 24x10b | A/D 24x10b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 208-LQFP | 208-LQFP |
| Supplier Device Package | 208-LQFP (28x28) | 208-LQFP (28x28) |
