| Part Number | LPC1827JET100E | LPC1837JET100E | LPC1817JET100E | LPC1822JET100E | LPC1823JET100E | LPC1825JET100E |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 180MHz | 180MHz | 180MHz | 180MHz | 180MHz | 180MHz |
| Connectivity | CANbus, EBI/EMI, I²C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART | CANbus, EBI/EMI, I²C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG | CANbus, EBI/EMI, I²C, IrDA, Microwire, SD, SPI, SSI, SSP, UART/USART, USB, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, WDT | Brown-out Detect/Reset, DMA, I²S, POR, WDT | Brown-out Detect/Reset, DMA, I²S, POR, WDT | Brown-out Detect/Reset, DMA, I²S, POR, WDT | Brown-out Detect/Reset, DMA, I²S, POR, WDT | Brown-out Detect/Reset, DMA, I²S, POR, WDT |
| Number of I/O | 49 | 49 | 49 | 49 | 49 | 49 |
| Program Memory Size | 1MB (1M x 8) | 1MB (1M x 8) | 1MB (1M x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 768KB (768K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 | 16K x 8 |
| RAM Size | 136K x 8 | 136K x 8 | 136K x 8 | 104K x 8 | 104K x 8 | 136K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.2V ~ 3.6V | 2.2V ~ 3.6V | 2.2V ~ 3.6V | 2.2V ~ 3.6V | 2.2V ~ 3.6V | 2.2V ~ 3.6V |
| Data Converters | A/D 4x10b; D/A 1x10b | A/D 4x10b; D/A 1x10b | A/D 4x10b; D/A 1x10b | A/D 4x10b; D/A 1x10b | A/D 4x10b; D/A 1x10b | A/D 4x10b; D/A 1x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

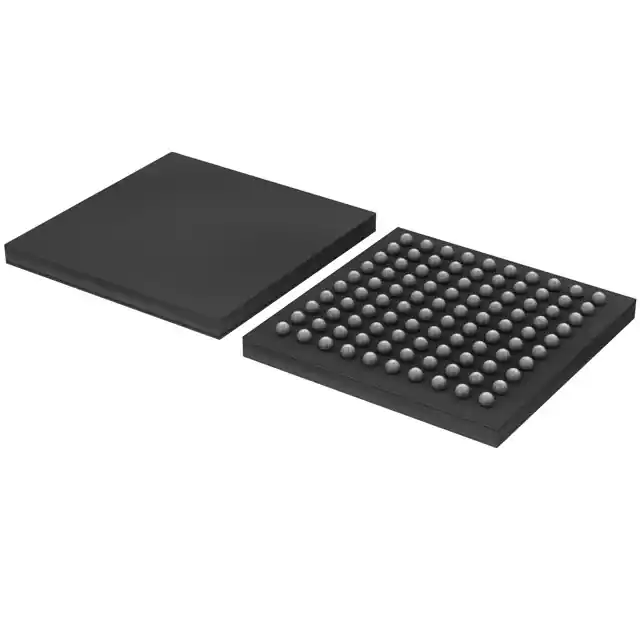

| Package / Case | 100-TFBGA | 100-TFBGA | 100-TFBGA | 100-TFBGA | 100-TFBGA | 100-TFBGA |
| Supplier Device Package | 100-TFBGA (9x9) | 100-TFBGA (9x9) | 100-TFBGA (9x9) | 100-TFBGA (9x9) | 100-TFBGA (9x9) | 100-TFBGA (9x9) |
