Please send RFQ , we will respond immediately.

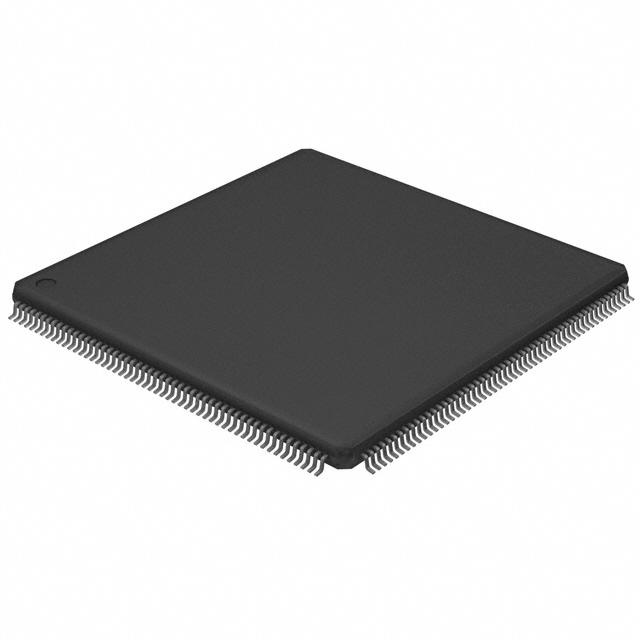

| Part Number | LPC1787FBD208,551 | LPC1788FBD208,551 | LPC1777FBD208,551 | LPC1785FBD208,551 | LPC1786FBD208,551 |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Discontinued at Digi-Key | Active | Discontinued at Digi-Key | Active |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 120MHz | 120MHz | 120MHz | 120MHz | 120MHz |
| Connectivity | CANbus, EBI/EMI, I²C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG | CANbus, EBI/EMI, I²C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG | CANbus, EBI/EMI, I²C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG | CANbus, EBI/EMI, Ethernet, I²C, Microwire, Memory Card, SPI, SSI, SSP, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, LCD, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, LCD, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 165 | 165 | 165 | 165 | 165 |
| Program Memory Size | 512KB (512K x 8) | 512KB (512K x 8) | 512KB (512K x 8) | 256KB (256K x 8) | 256KB (256K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 | 4K x 8 |
| RAM Size | 96K x 8 | 96K x 8 | 96K x 8 | 80K x 8 | 80K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V | 2.4V ~ 3.6V | 2.4V ~ 3.6V | 2.4V ~ 3.6V | 2.4V ~ 3.6V |
| Data Converters | A/D 8x12b; D/A 1x10b | A/D 8x12b; D/A 1x10b | A/D 8x12b; D/A 1x10b | A/D 8x12b; D/A 1x10b | A/D 8x12b; D/A 1x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 208-LQFP | 208-LQFP | 208-LQFP | 208-LQFP | 208-LQFP |
| Supplier Device Package | 208-LQFP (28x28) | 208-LQFP (28x28) | 208-LQFP (28x28) | 208-LQFP (28x28) | 208-LQFP (28x28) |
