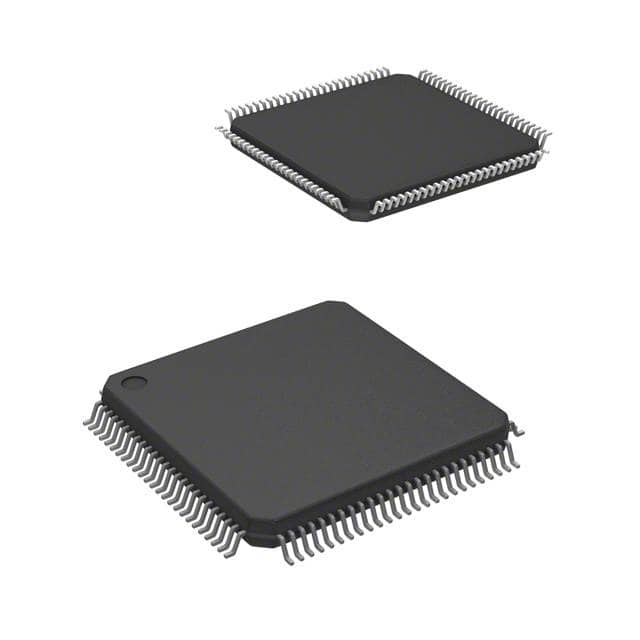

| Part Number | LPC1769FBD100K | LPC1763FBD100K | LPC1764FBD100K | LPC1765FBD100K | LPC1766FBD100K | LPC1767FBD100K | LPC1768FBD100K |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 | ARM® Cortex®-M3 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 120MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz |
| Connectivity | CANbus, Ethernet, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG | I²C, IrDA, Microwire, SPI, SSI, UART/USART | CANbus, Ethernet, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG | CANbus, I²C, IrDA, Microwire, SPI, SSI, SSP, UART/USART, USB OTG | CANbus, Ethernet, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG | I²C, IrDA, Microwire, SPI, SSI, UART/USART | CANbus, Ethernet, I²C, IrDA, Microwire, SPI, SSI, UART/USART, USB OTG |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT | Brown-out Detect/Reset, DMA, I²S, Motor Control PWM, POR, PWM, WDT |
| Number of I/O | 70 | 70 | 70 | 70 | 70 | 70 | 70 |
| Program Memory Size | 512KB (512K x 8) | 256KB (256K x 8) | 128KB (128K x 8) | 256KB (256K x 8) | 256KB (256K x 8) | 512KB (512K x 8) | 512KB (512K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 64K x 8 | 64K x 8 | 32K x 8 | 64K x 8 | 64K x 8 | 64K x 8 | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.4V ~ 3.6V | 2.4V ~ 3.6V | 2.4V ~ 3.6V | 2.4V ~ 3.6V | 2.4V ~ 3.6V | 2.4V ~ 3.6V | 2.4V ~ 3.6V |
| Data Converters | A/D 8x12b SAR; D/A 1x10b | A/D 8x12b; D/A 1x10b | A/D 8x12b | A/D 8x12b; D/A 1x10b | A/D 8x12b; D/A 1x10b | A/D 8x12b; D/A 1x10b | A/D 8x12b; D/A 1x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP | 100-LQFP |
| Supplier Device Package | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) | 100-LQFP (14x14) |
