| Part Number | LPC11A04UK,118 | LPC11A02UK,118 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active |
| Core Processor | ARM® Cortex®-M0 | ARM® Cortex®-M0 |
| Core Size | 32-Bit Single-Core | 32-Bit Single-Core |
| Speed | 50MHz | 50MHz |
| Connectivity | I²C, Microwire, SPI, SSI, SSP, UART/USART | I²C, Microwire, SPI, SSI, SSP, UART/USART |
| Peripherals | Brown-out Detect/Reset, POR, WDT | Brown-out Detect/Reset, POR, WDT |
| Number of I/O | 18 | 18 |
| Program Memory Size | 32KB (32K x 8) | 16KB (16K x 8) |
| Program Memory Type | Flash | Flash |
| EEPROM Size | 4K x 8 | 2K x 8 |
| RAM Size | 8K x 8 | 4K x 8 |
| Voltage - Supply (Vcc/Vdd) | 2.6V ~ 3.6V | 2.6V ~ 3.6V |
| Data Converters | A/D 8x10b; D/A 1x10b | A/D 8x10b; D/A 1x10b |
| Oscillator Type | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount |

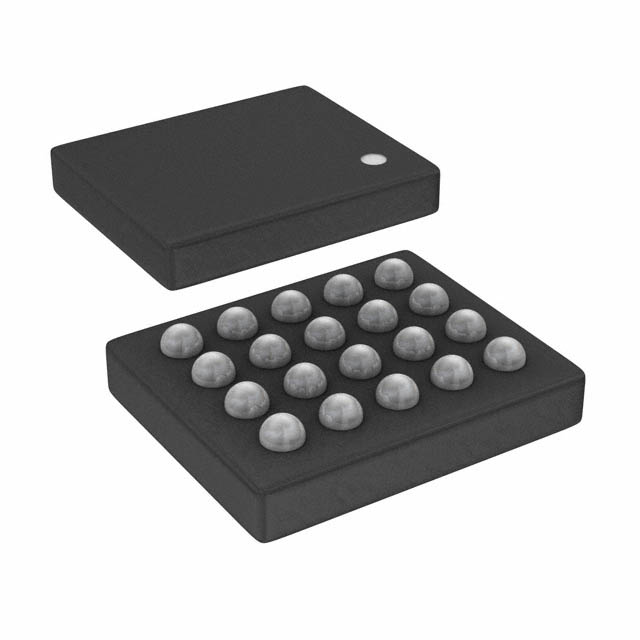

| Package / Case | 20-UFBGA, WLCSP | 20-UFBGA, WLCSP |
| Supplier Device Package | 20-WLCSP (2.55x2.55) | 20-WLCSP (2.55x2.55) |
