| Part Number | LD6836CX4/33P,315 | LD6836CX4/C33P,315 | LD6836CX4/36P,315 | LD6816CX4/33P,315 | LD6836CX4/13P,315 | LD6836CX4/23P,315 | LD6836CX4/30P,315 | LD6836CX4/33H,315 |
|---|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | - | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | - | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | - | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | - | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V | - | 3.6V | 3.3V | 1.3V | 2.3V | 3V | 3.3V |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.16V @ 300mA | - | 0.16V @ 300mA | 0.075V @ 150mA | 0.16V @ 300mA | 0.16V @ 300mA | 0.16V @ 300mA | 0.16V @ 300mA |
| Current - Output | 300mA | - | 300mA | 150mA | 300mA | 300mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 100 µA | - | 100 µA | 100 µA | 100 µA | 100 µA | 100 µA | 100 µA |
| Current - Supply (Max) | 250 µA | - | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA |
| PSRR | 55dB (1kHz) | - | 55dB (1kHz) | 55dB (1kHz) | 55dB (1kHz) | 55dB (1kHz) | 55dB (1kHz) | 55dB (1kHz) |
| Control Features | Enable | - | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | - | Over Current, Over Temperature | Over Current, Over Temperature, Transient Voltage | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C | - | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

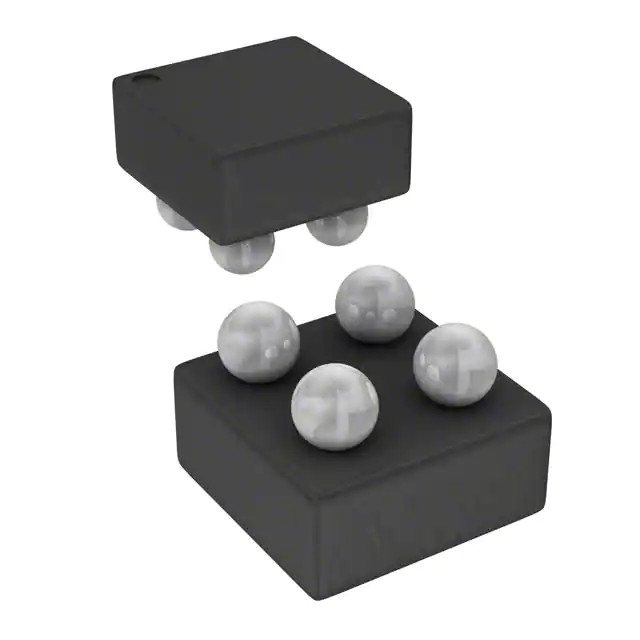

| Package / Case | 4-XFBGA, WLCSP | - | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.76x0.76) | - | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) |
