Please send RFQ , we will respond immediately.
| Part Number | LD6836CX4/30P,315 | LD6836CX4/33P,315 | LD6836CX4/36P,315 | LD6816CX4/30P,315 | LD6836CX4/20P,315 | LD6836CX4/30H,315 |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 3V | 3.3V | 3.6V | 3V | 2V | 3V |
| Voltage - Output (Max) | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.16V @ 300mA | 0.16V @ 300mA | 0.16V @ 300mA | 0.075V @ 150mA | 0.16V @ 300mA | 0.16V @ 300mA |
| Current - Output | 300mA | 300mA | 300mA | 150mA | 300mA | 300mA |
| Current - Quiescent (Iq) | 100 µA | 100 µA | 100 µA | 100 µA | 100 µA | 100 µA |
| Current - Supply (Max) | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA | 250 µA |
| PSRR | 55dB (1kHz) | 55dB (1kHz) | 55dB (1kHz) | 55dB (1kHz) | 55dB (1kHz) | 55dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature | Over Current, Over Temperature, Transient Voltage | Over Current, Over Temperature | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

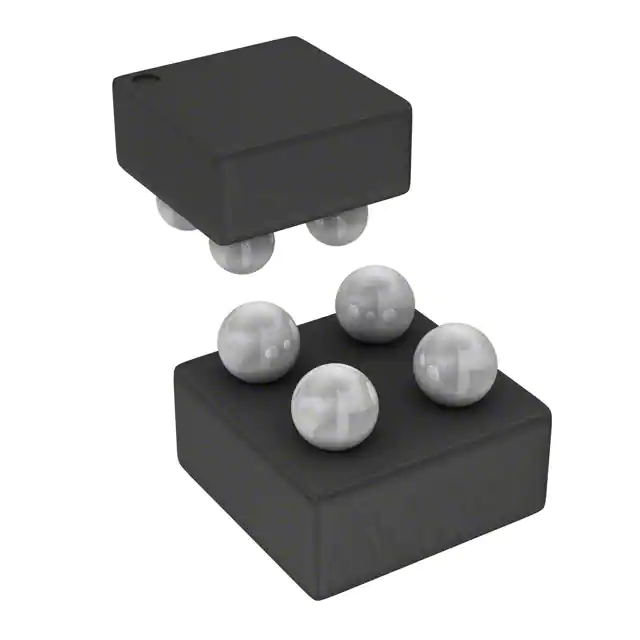

| Package / Case | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP | 4-XFBGA, WLCSP |
| Supplier Device Package | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) | 4-WLCSP (0.76x0.76) |
