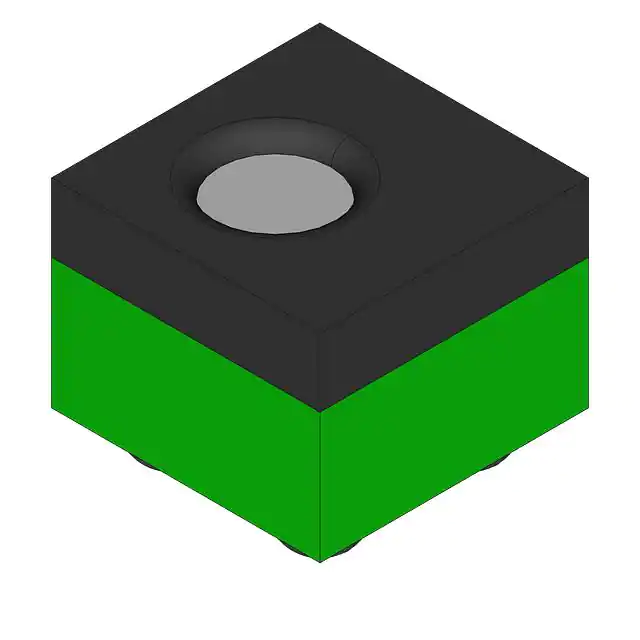

| Part Number | LD6816CX4/C22P,315 | LD6816CX4/C28P,315 | LD6816CX4/C27P,315 | LD6816CX4/C23P,315 | LD6816CX4/C25P,315 | LD6816CX4/C29P,315 | LD6816CX4/22P,315 | LD6816CX4/C12P,315 | LD6816CX4/C20P,315 |
|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Obsolete | Active | Active |
| Output Configuration | - | - | - | - | - | - | Positive | - | - |
| Output Type | - | - | - | - | - | - | Fixed | - | - |
| Number of Regulators | - | - | - | - | - | - | 1 | - | - |
| Voltage - Input (Max) | - | - | - | - | - | - | 5.5V | - | - |
| Voltage - Output (Min/Fixed) | - | - | - | - | - | - | 2.2V | - | - |
| Voltage - Output (Max) | - | - | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | - | - | - | - | - | - | 0.075V @ 150mA | - | - |
| Current - Output | - | - | - | - | - | - | 150mA | - | - |
| Current - Quiescent (Iq) | - | - | - | - | - | - | 100 µA | - | - |
| Current - Supply (Max) | - | - | - | - | - | - | 250 µA | - | - |
| PSRR | - | - | - | - | - | - | 55dB (1kHz) | - | - |
| Control Features | - | - | - | - | - | - | Enable | - | - |
| Protection Features | - | - | - | - | - | - | Over Current, Over Temperature, Transient Voltage | - | - |
| Operating Temperature | - | - | - | - | - | - | -40°C ~ 85°C | - | - |
| Mounting Type | - | - | - | - | - | - | Surface Mount | - | - |
| Package / Case | - | - | - | - | - | - | 4-XFBGA, WLCSP | - | - |
| Supplier Device Package | - | - | - | - | - | - | 4-WLCSP (0.76x0.76) | - | - |
