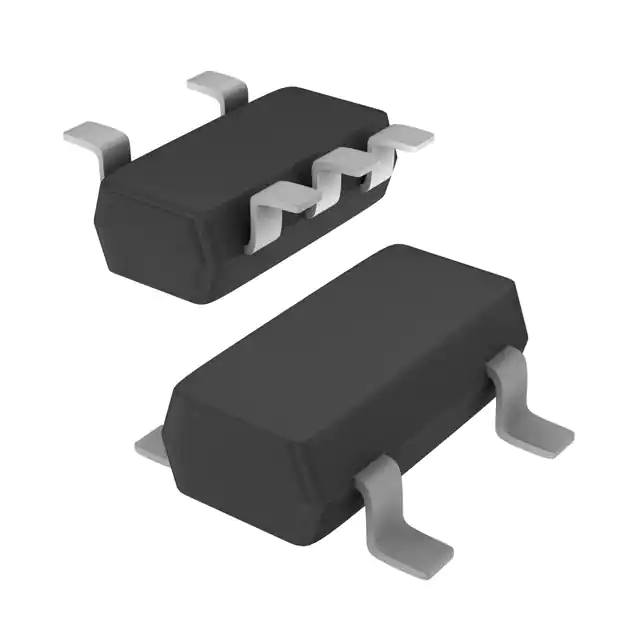

| Part Number | LD6815TD/29P,125 | LD6815TD/21P,125 | LD6815TD/25P,125 | LD6815TD/28P,125 | LD6815TD/29H,125 |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 2.9V | 2.1V | 2.5V | 2.8V | 2.9V |
| Voltage - Output (Max) | - | - | - | - | - |
| Voltage Dropout (Max) | 0.25V @ 150mA (Typ) | 0.25V @ 150mA (Typ) | 0.25V @ 150mA (Typ) | 0.25V @ 150mA (Typ) | 0.25V @ 150mA (Typ) |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 35 µA | 35 µA | 35 µA | 35 µA | 35 µA |
| Current - Supply (Max) | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA |
| PSRR | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Transient Voltage | Over Current, Transient Voltage | Over Current, Transient Voltage | Over Current, Transient Voltage | Over Current, Transient Voltage |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 | SC-74A, SOT-753 |
| Supplier Device Package | 5-TSOP | 5-TSOP | 5-TSOP | 5-TSOP | 5-TSOP |
