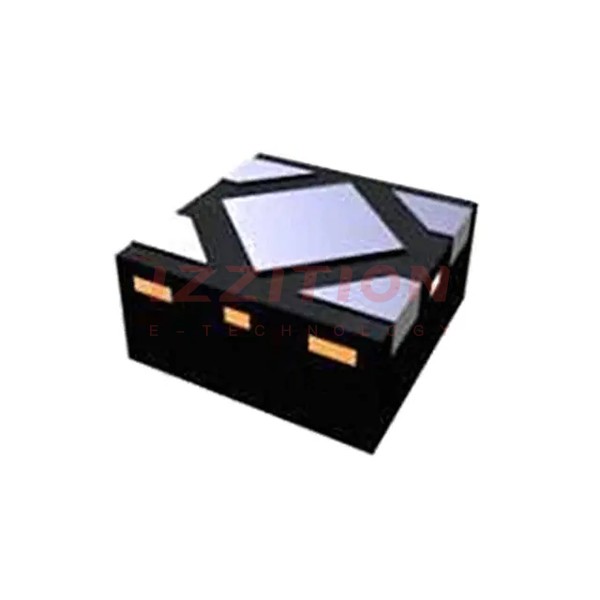

| Part Number | LD6805K/12H,115 | LD6805K/12P,115 | LD6805K/18H,115 | LD6805K/13H,115 | LD6805K/14H,115 | LD6805K/16H,115 | LD6805K/22H,115 |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | Positive |
| Output Type | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed | Fixed |
| Number of Regulators | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Voltage - Input (Max) | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V | 1.2V | 1.8V | 1.3V | 1.4V | 1.6V | 2.2V |
| Voltage - Output (Max) | - | - | - | - | - | - | - |
| Voltage Dropout (Max) | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA | 0.25V @ 150mA |
| Current - Output | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA | 150mA |
| Current - Quiescent (Iq) | 35 µA | 35 µA | 35 µA | 35 µA | 35 µA | 35 µA | 35 µA |
| Current - Supply (Max) | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA | 150 µA |
| PSRR | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) | 75dB (1kHz) |
| Control Features | Enable | Enable | Enable | Enable | Enable | Enable | Enable |
| Protection Features | Over Current, Transient Voltage | Over Current, Transient Voltage | Over Current, Transient Voltage | Over Current, Transient Voltage | Over Current, Transient Voltage | Over Current, Transient Voltage | Over Current, Transient Voltage |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 4-UDFN Exposed Pad | 4-UDFN Exposed Pad | 4-UDFN Exposed Pad | 4-UDFN Exposed Pad | 4-UDFN Exposed Pad | 4-UDFN Exposed Pad | 4-UDFN Exposed Pad |
| Supplier Device Package | DFN1010C-4 | DFN1010C-4 | DFN1010C-4 | DFN1010C-4 | DFN1010C-4 | DFN1010C-4 | DFN1010C-4 |
