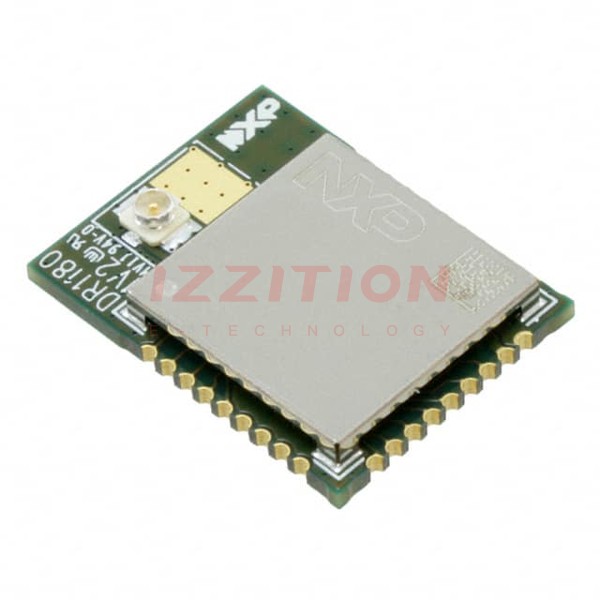

| Part Number | JN5168-001-M06Z | JN5168-001-M00Z | JN5168-001-M03Z | JN5168-001-M05Z |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| RF Family/Standard | 802.15.4 | 802.15.4 | 802.15.4 | 802.15.4 |
| Protocol | Zigbee® | Zigbee® | Zigbee® | Zigbee® |
| Modulation | O-QPSK | O-QPSK | O-QPSK | O-QPSK |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate | - | - | - | - |
| Power - Output | 22dBm | 2.5dBm | 2.5dBm | 9.5dBm |
| Sensitivity | -100dBm | -95dBm | -95dBm | -96dBm |
| Serial Interfaces | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART | I²C, SPI, UART |
| Antenna Type | Antenna Not Included, U.FL | Integrated, Trace | Antenna Not Included, U.FL | Antenna Not Included, U.FL |
| Utilized IC / Part | - | - | - | - |
| Memory Size | 256kB Flash, 4kB EEPROM, 32kB RAM | 256kB Flash, 4kB EEPROM, 32kB RAM | 256kB Flash, 4kB EEPROM, 32kB RAM | 256kB Flash, 4kB EEPROM, 32kB RAM |
| Voltage - Supply | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V |
| Current - Receiving | 22mA | 17mA | 17mA | 22mA |
| Current - Transmitting | 175mA | 15.3mA | 15.3mA | 35mA |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Package / Case | 27-SMD Module | 27-SMD Module | 27-SMD Module | 27-SMD Module |
