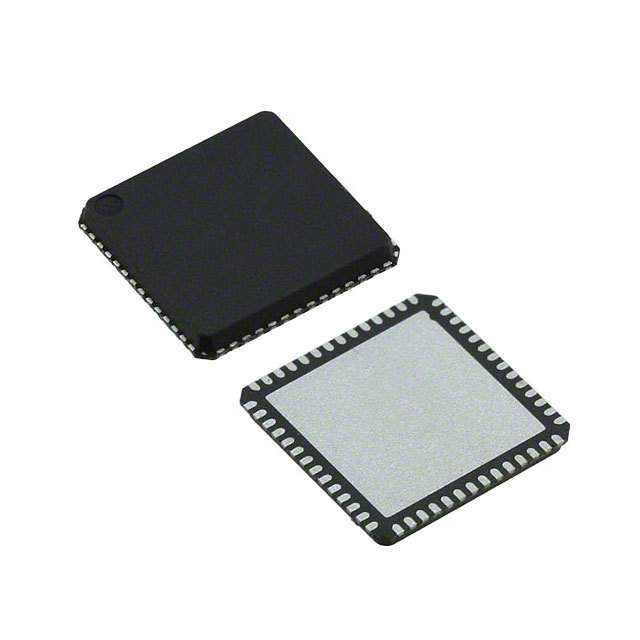

| Part Number | JN5148/J01,518 | JN5148/Z01,518 | JN5148/001,518 | JN5148/J01,515 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | 802.15.4 | 802.15.4 | 802.15.4 | 802.15.4 |
| Protocol | Zigbee® | Zigbee® | Zigbee® | Zigbee® |
| Modulation | O-QPSK | O-QPSK | O-QPSK | O-QPSK |
| Frequency | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate (Max) | 667kbps | 667kbps | 667kbps | 667kbps |
| Power - Output | 2.75dBm | 2.75dBm | 2.75dBm | 2.75dBm |
| Sensitivity | -96.5dBm | -96.5dBm | -96.5dBm | -96.5dBm |
| Memory Size | 128kB ROM, 128kB RAM | 128kB ROM, 128kB RAM | 128kB ROM, 128kB RAM | 128kB ROM, 128kB RAM |
| Serial Interfaces | I²C, JTAG, SPI, UART | I²C, JTAG, SPI, UART | I²C, JTAG, SPI, UART | I²C, JTAG, SPI, UART |
| GPIO | 21 | 21 | 21 | 21 |
| Voltage - Supply | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V | 2V ~ 3.6V |
| Current - Receiving | 17.5mA | 17.5mA | 17.5mA | 17.5mA |
| Current - Transmitting | 15mA | 15mA | 15mA | 15mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount |
| Package / Case | 56-VFQFN Exposed Pad | 56-VFQFN Exposed Pad | 56-VFQFN | 56-VFQFN Exposed Pad |
| Supplier Device Package | 56-HVQFN (8x8) | 56-HVQFN (8x8) | - | 56-HVQFN (8x8) |
