| Part Number | CBTL06DP212EE,118 | CBTL06DP213EE,118 | CBTL06GP212EE,118 | CBTL06DP211EE,118 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Obsolete | Obsolete |
| Applications | DisplayPort, PCIe | DisplayPort, PCIe | DisplayPort, PCIe | DisplayPort, PCIe, Video |
| Multiplexer/Demultiplexer Circuit | 2:1, 4:1 | 2:1, 4:1 | 2:1, 4:1 | 2:1, 4:1 |
| Switch Circuit | - | - | - | - |
| Number of Channels | 6 | 6 | 6 | 6 |
| On-State Resistance (Max) | 6.5Ohm (Typ) | 14Ohm (Typ) | 6Ohm | - |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V | 3V ~ 3.6V | 3.3V | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - | - | - |
| -3db Bandwidth | 5GHz | 11.1GHz | 5GHz | 2GHz |
| Features | Bi-Directional | Bi-Directional | Bi-Directional | DVI, HDMI |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 105°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

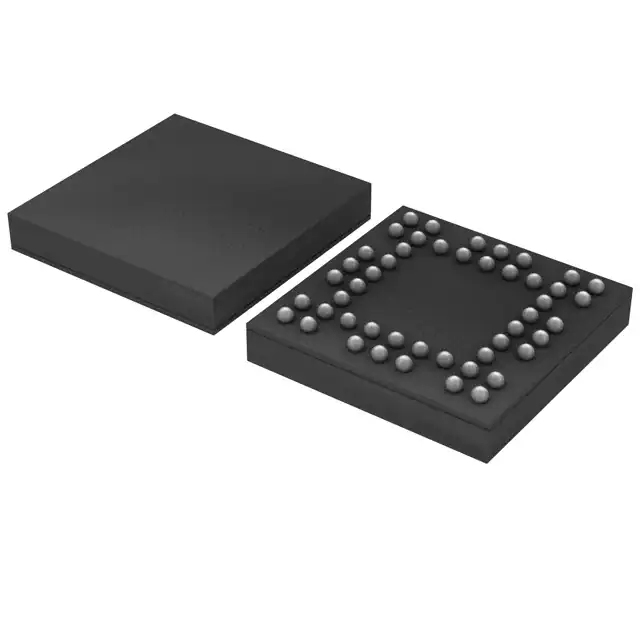

| Package / Case | 48-TFBGA | 48-TFBGA | 48-TFBGA | 48-TFBGA |
| Supplier Device Package | 48-TFBGA (5x5) | 48-TFBGA (5x5) | 48-TFBGA (5x5) | 48-TFBGA (5x5) |
