Please send RFQ , we will respond immediately.
| Part Number | CBTL02043BBQ,115 | CBTL02042BBQ,115 | CBTL02043ABQ,115 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Active |
| Applications | DisplayPort, PCIe, USB | DisplayPort, PCIe, USB | DisplayPort, PCIe, USB |
| Multiplexer/Demultiplexer Circuit | 2:1 | 2:1 | 2:1 |
| Switch Circuit | - | - | - |
| Number of Channels | 2 | 2 | 2 |
| On-State Resistance (Max) | 6Ohm (Typ) | 6Ohm (Typ) | 6Ohm (Typ) |
| Voltage - Supply, Single (V+) | 3V ~ 3.6V | 3V ~ 3.6V | 3V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - | - | - |
| -3db Bandwidth | 10GHz | 7GHz | 10GHz |
| Features | Bi-Directional, SATA | Bi-Directional, SATA | Bi-Directional, SATA |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

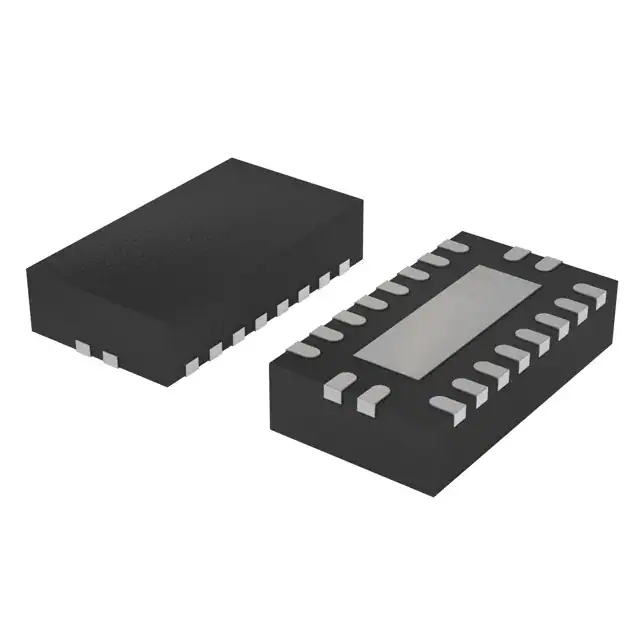

| Package / Case | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad | 20-VFQFN Exposed Pad |
| Supplier Device Package | 20-DHVQFN (4.5x2.5) | 20-DHVQFN (4.5x2.5) | 20-DHVQFN (4.5x2.5) |
