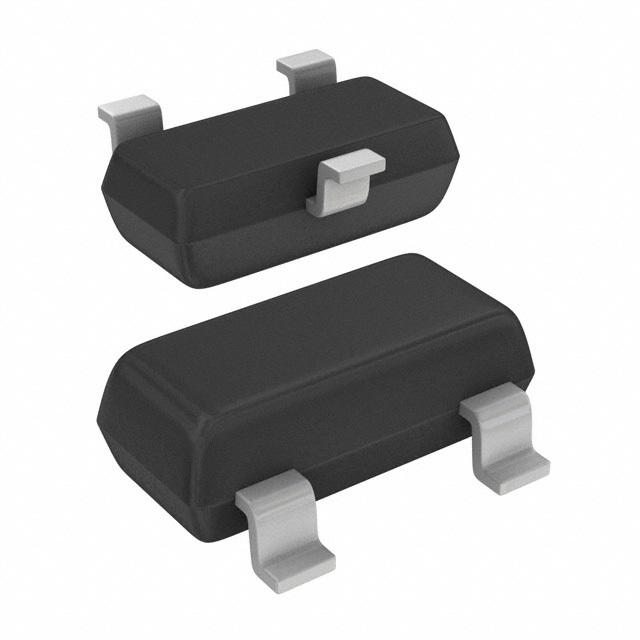

NXP USA Inc.-BZX84-C13/LF1R - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	BZX84-C13/LF1R	BZX84-C15/LF1R	BZX84-C16/LF1R	BZX84-C18/LF1R	BZX84-C33/LF1R	BZX84-C10/LF1R	BZX84-C11/LF1R	BZX84-C12/LF1R
Manufacturer	NXP USA Inc.	NXP USA Inc.	NXP USA Inc.	NXP USA Inc.	NXP USA Inc.	NXP USA Inc.	NXP USA Inc.	NXP USA Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	13 V	15 V	16 V	18 V	33 V	10 V	11 V	12 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	250 mW	250 mW	250 mW	250 mW	250 mW	250 mW	250 mW	250 mW
Impedance (Max) (Zzt)	30 Ohms	30 Ohms	40 Ohms	45 Ohms	80 Ohms	20 Ohms	20 Ohms	25 Ohms
Current - Reverse Leakage @ Vr	100 nA @ 8 V	50 nA @ 10.5 V	50 nA @ 11.2 V	50 nA @ 12.6 V	50 nA @ 23.1 V	200 nA @ 7 V	100 nA @ 8 V	100 nA @ 8 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C	-65°C ~ 150°C
Mounting Type	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23 (TO-236AB)	SOT-23 (TO-236AB)	SOT-23 (TO-236AB)	SOT-23 (TO-236AB)	SOT-23 (TO-236AB)	SOT-23 (TO-236AB)	SOT-23 (TO-236AB)	SOT-23 (TO-236AB)

NXP USA Inc. BZX84-C13/LF1R
