NXP USA Inc.-BZX79-C20,143 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	BZX79-C20,143	BZX79-C24,143	BZX79-C30,143	BZX79-C22,143	BZX79-C27,143	BZX79-C10,143	BZX79-C20,113	BZX79-C20,133
Manufacturer	NXP USA Inc.	Nexperia USA Inc.	NXP Semiconductors	NXP Semiconductors	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.
Product Status	Active	Active	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	20 V	24 V	30 V	22 V	27 V	10 V	20 V	20 V
Tolerance	±5%	±5%	±5%	±5%	±5%	±5%	±5%	±5%
Power - Max	400 mW	400 mW	400 mW	400 mW	400 mW	400 mW	400 mW	400 mW
Impedance (Max) (Zzt)	55 Ohms	70 Ohms	80 Ohms	55 Ohms	80 Ohms	20 Ohms	55 Ohms	55 Ohms
Current - Reverse Leakage @ Vr	50 nA @ 14 V	50 nA @ 16.8 V	50 nA @ 700 mV	50 nA @ 700 mV	50 nA @ 18.9 V	200 nA @ 7 V	50 nA @ 14 V	50 nA @ 14 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial
Supplier Device Package	ALF2	ALF2	ALF2	ALF2	ALF2	ALF2	ALF2	ALF2

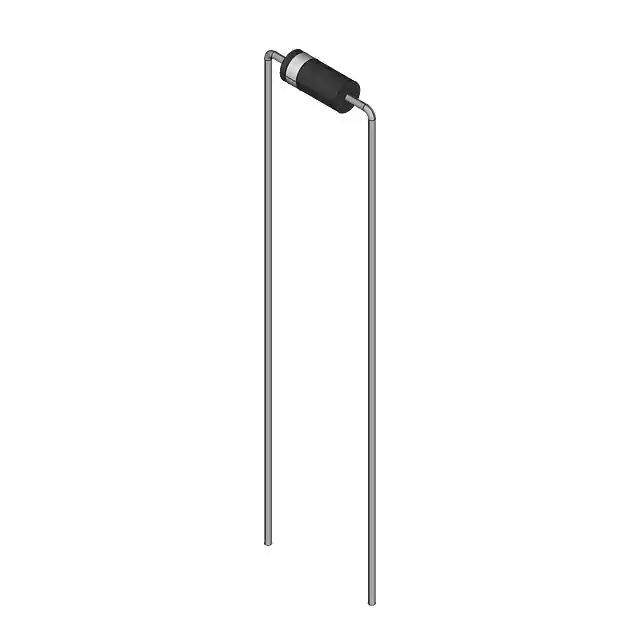

NXP USA Inc. BZX79-C20,143
