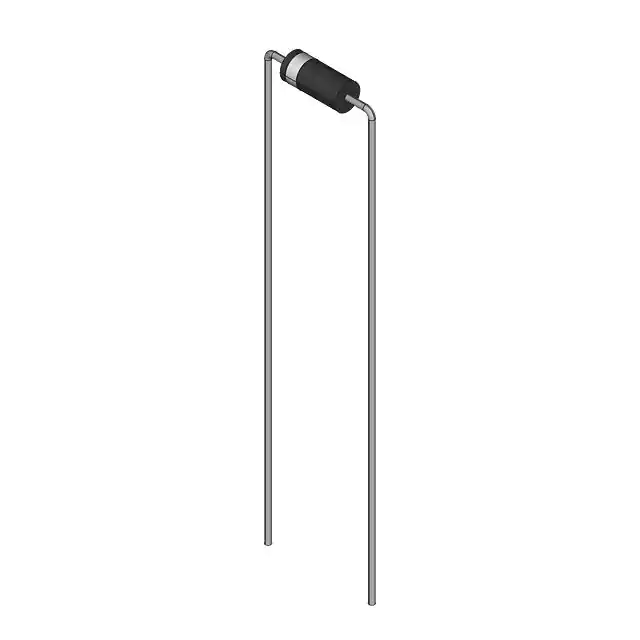

NXP USA Inc.-BZX79-B47,113 - Diodes - Zener - Single Product Specifications and Latest Quotes

Part Number	BZX79-B47,113	BZX79-B4V7,113	BZX79-B47,133	BZX79-B47,143	BZX79-B27,113	BZX79-B43,113
Manufacturer	NXP USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	Nexperia USA Inc.	NXP USA Inc.
Product Status	Active	Active	Active	Active	Active	Active
Voltage - Zener (Nom) (Vz)	47 V	4.7 V	47 V	47 V	27 V	43 V
Tolerance	±2%	±2%	±2%	±2%	±2%	±2%
Power - Max	400 mW	400 mW	400 mW	400 mW	400 mW	400 mW
Impedance (Max) (Zzt)	170 Ohms	80 Ohms	170 Ohms	170 Ohms	80 Ohms	150 Ohms
Current - Reverse Leakage @ Vr	50 nA @ 32.9 V	3 µA @ 2 V	50 nA @ 32.9 V	50 nA @ 32.9 V	50 nA @ 18.9 V	50 nA @ 30.1 V
Voltage - Forward (Vf) (Max) @ If	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA	900 mV @ 10 mA
Operating Temperature	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C	-65°C ~ 200°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Package / Case	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial	DO-204AH, DO-35, Axial
Supplier Device Package	ALF2	ALF2	ALF2	ALF2	ALF2	ALF2

NXP USA Inc. BZX79-B47,113
