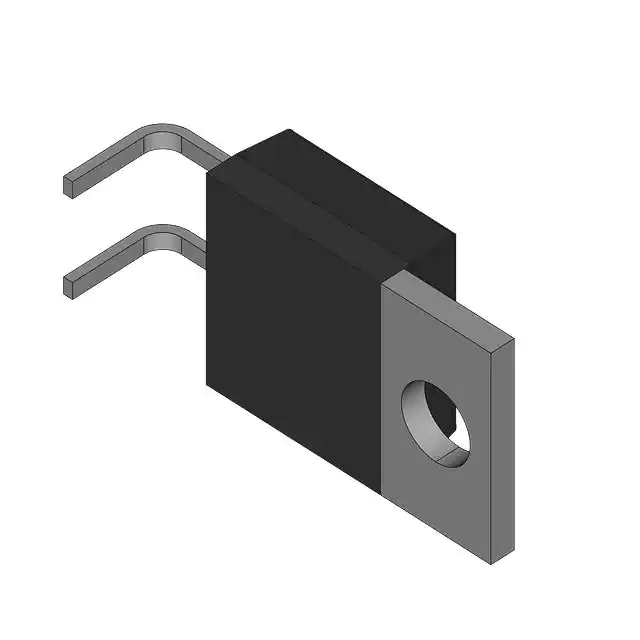

| Part Number | BYC20D-600PQ | BYC20DX-600PQ | BYC20X-600PQ |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | WeEn Semiconductors | WeEn Semiconductors |
| Product Status | Obsolete | Active | Active |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 20A | 20A | 20A |
| Voltage - Forward (Vf) (Max) @ If | 2.9 V @ 20 A | 2.9 V @ 20 A | 2.5 V @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 20 ns | 20 ns | 35 ns |
| Current - Reverse Leakage @ Vr | 10 µA @ 600 V | 10 µA @ 600 V | 10 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-2 | TO-220-2 Full Pack, Isolated Tab | TO-220-2 Full Pack, Isolated Tab |
| Supplier Device Package | TO-220AC | TO-220F | TO-220FP |
| Operating Temperature - Junction | 175°C (Max) | 175°C (Max) | 175°C (Max) |
