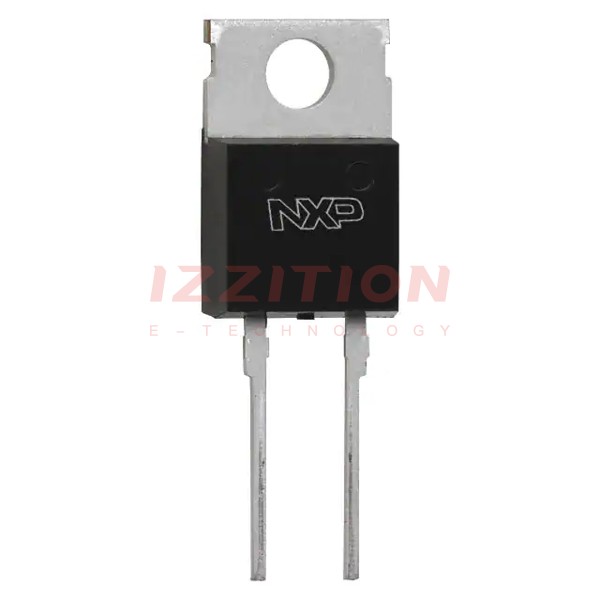

| Part Number | BY459-1500,127 | BY459X-1500,127 | BY359-1500,127 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1500 V | 1500 V | 1500 V |
| Current - Average Rectified (Io) | 12A (DC) | 12A (DC) | 10A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 6.5 A | 1.3 V @ 6.5 A | 1.8 V @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Standard Recovery >500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 350 ns | 350 ns | 600 ns |
| Current - Reverse Leakage @ Vr | - | 250 µA @ 1300 V | 100 µA @ 1300 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-2 | TO-220-2 Full Pack | TO-220-2 |
| Supplier Device Package | TO-220AC | TO-220FP | TO-220AC |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) |
