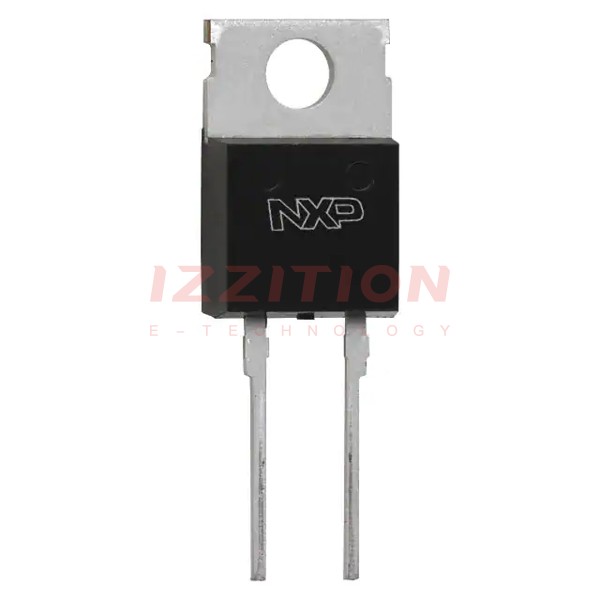

| Part Number | BY229-600,127 | BY229X-600,127 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| Diode Type | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 500 V | 500 V |
| Current - Average Rectified (Io) | 8A | 8A |
| Voltage - Forward (Vf) (Max) @ If | 1.85 V @ 20 A | 1.85 V @ 20 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 135 ns | 135 ns |
| Current - Reverse Leakage @ Vr | 400 µA @ 500 V | 400 µA @ 500 V |
| Capacitance @ Vr, F | - | - |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-220-2 | TO-220-2 Full Pack |
| Supplier Device Package | TO-220AC | TO-220FP |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) |
