NXP USA Inc.-BUK9832-55A,115 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	55 V
Current - Continuous Drain (Id) @ 25°C:	12A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	29mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:	2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±10V
Input Capacitance (Ciss) (Max) @ Vds:	1594 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	8W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SC-73
Package / Case:	TO-261-4, TO-261AA

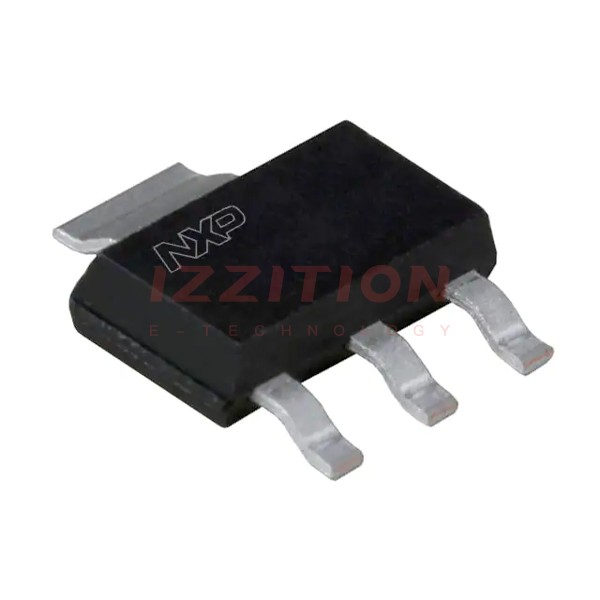

NXP USA Inc. BUK9832-55A,115
