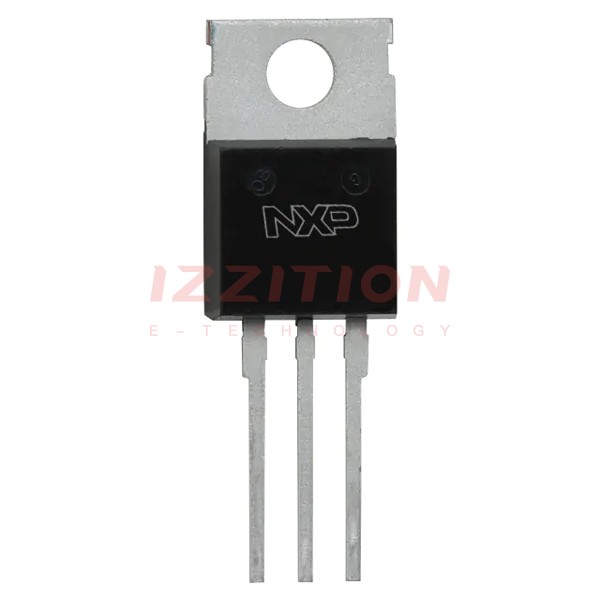

| Part Number | BUK9516-55A,127 | BUK9518-55A,127 | BUK9506-55A,127 | BUK9510-55A,127 | BUK9511-55A,127 | BUK9514-55A,127 |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V | 55 V | 55 V | 55 V | 55 V | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 66A (Tc) | 61A (Tc) | 75A (Tc) | 75A (Tc) | 75A (Ta) | 73A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 15mOhm @ 25A, 10V | 16mOhm @ 25A, 10V | 5.8mOhm @ 25A, 10V | 9mOhm @ 25A, 10V | 10mOhm @ 25A, 10V | 13mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 1mA | 2V @ 1mA | 2V @ 1mA | 2V @ 1mA | 2V @ 1mA | 2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - | 34 nC @ 5 V | - | 68 nC @ 5 V | - | - |
| Vgs (Max) | ±10V | ±15V | ±15V | ±15V | ±10V | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 3085 pF @ 25 V | 2210 pF @ 25 V | 8600 pF @ 25 V | 4307 pF @ 25 V | 4230 pF @ 25 V | 3307 pF @ 25 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 138W (Tc) | 136W (Tc) | 300W (Tc) | 200W (Tc) | 166W (Ta) | 149W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220AB | TO-220AB | TO-220AB | TO-220AB | TO-220AB | TO-220AB |
| Package / Case | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 | TO-220-3 |
