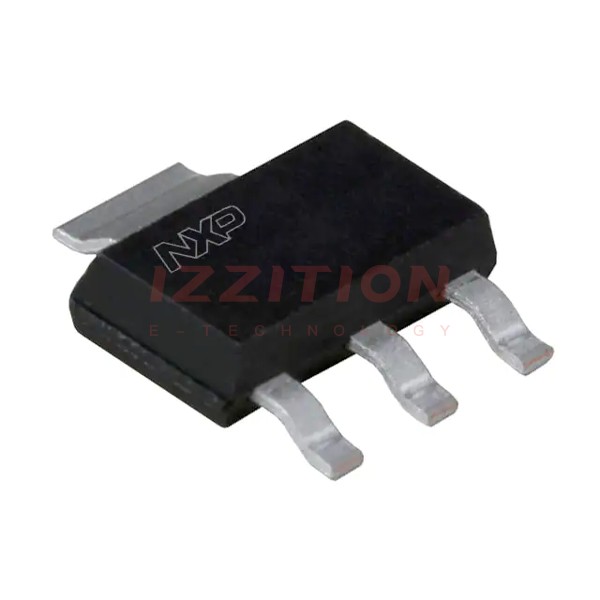

| Part Number | BUK78150-55A,135 | BUK78150-55A,115 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 55 V | 55 V |
| Current - Continuous Drain (Id) @ 25°C | 5.5A (Tc) | 5.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 150mOhm @ 5A, 10V | 150mOhm @ 5A, 10V |
| Vgs(th) (Max) @ Id | 4V @ 1mA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Vgs (Max) | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 230 pF @ 25 V | 230 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 8W (Tc) | 8W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | SC-73 | SC-73 |
| Package / Case | TO-261-4, TO-261AA | TO-261-4, TO-261AA |
