| Part Number | BUK215-50Y,118 | BUK217-50Y,118 | BUK205-50Y,118 | BUK213-50Y,118 | BUK214-50Y,118 |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 | 1:1 | 1:1 | 1:1 |
| Output Configuration | High Side | High Side | High Side | High Side | High Side |
| Output Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Interface | On/Off | On/Off | On/Off | On/Off | On/Off |
| Voltage - Load | 5.5V ~ 35V | 5.5V ~ 35V | 5V ~ 40V | 5.5V ~ 35V | 5.5V ~ 35V |
| Voltage - Supply (Vcc/Vdd) | Not Required | Not Required | Not Required | Not Required | Not Required |
| Current - Output (Max) | 9A | 25A | 6A | 8.5A | 6A |
| Rds On (Typ) | 28mOhm | 10mOhm | 45mOhm | 80mOhm | 45mOhm |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| Features | Status Flag | Status Flag | Status Flag | - | Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Over Temperature, Over Voltage, UVLO | Current Limiting (Fixed), Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

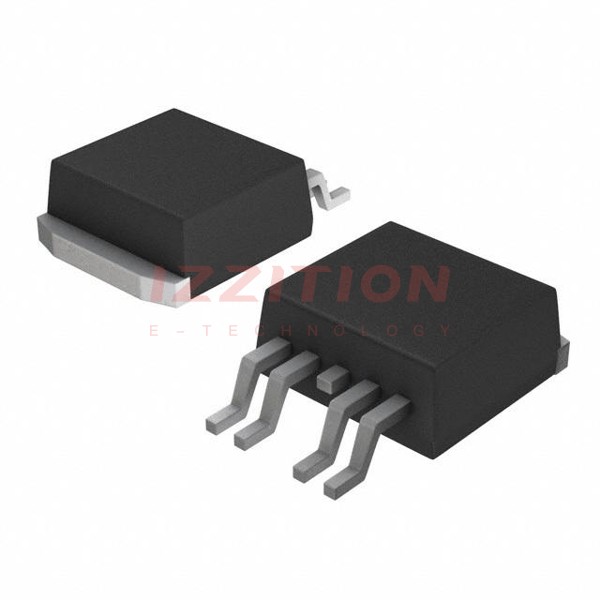

| Supplier Device Package | D2PAK | D2PAK | D2PAK | D2PAK | D2PAK |
| Package / Case | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB | TO-263-5, D²Pak (4 Leads + Tab), TO-263BB |
