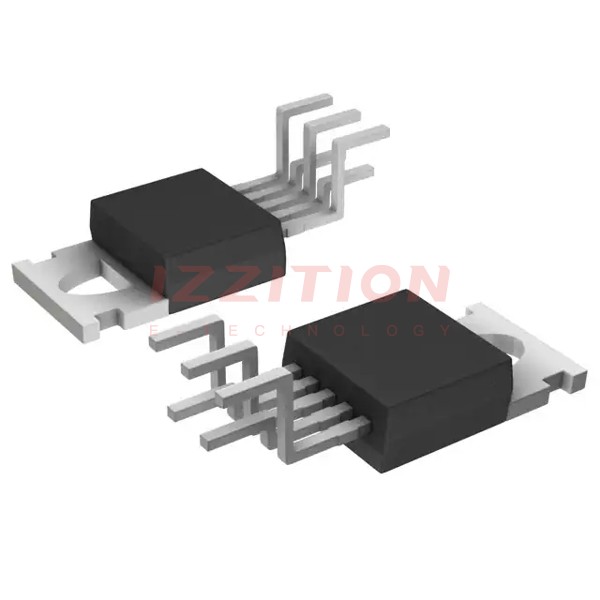

| Part Number | BUK124-50L,127 | BUK125-50L,127 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| Switch Type | General Purpose | General Purpose |
| Number of Outputs | 1 | 1 |
| Ratio - Input:Output | 1:1 | 1:1 |
| Output Configuration | Low Side | Low Side |
| Output Type | N-Channel | N-Channel |
| Interface | On/Off | On/Off |
| Voltage - Load | 50V (Max) | 50V (Max) |
| Voltage - Supply (Vcc/Vdd) | 5V | 5V |
| Current - Output (Max) | 30A | 40A |
| Rds On (Typ) | 21mOhm | 15mOhm |
| Input Type | Non-Inverting | Non-Inverting |
| Features | Status Flag | Status Flag |
| Fault Protection | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage | Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | SOT263B-01 | SOT263B-01 |
| Package / Case | TO-220-5 Formed Leads | TO-220-5 Formed Leads |
