Please send RFQ , we will respond immediately.

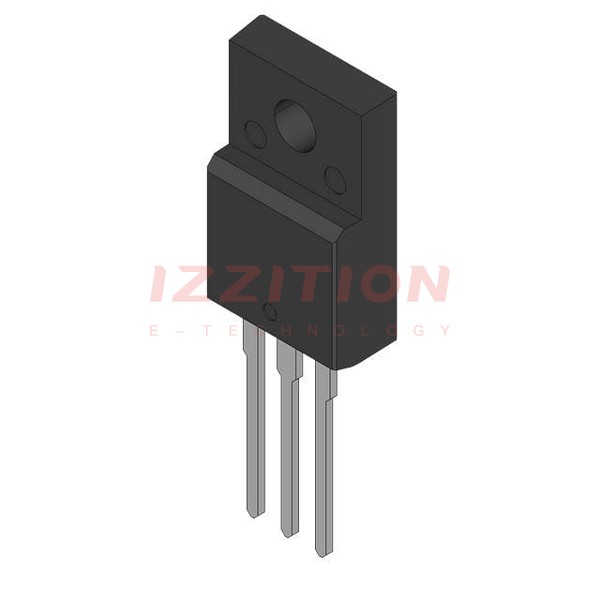

| Part Number | BTA316X-600E,127 | BTA316X-800E,127 | BTA310X-600E,127 | BTA312X-600E,127 | BTA316-600E,127 | BTA316X-600B,127 | BTA316X-600C,127 |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Triac Type | Logic - Sensitive Gate | Logic - Sensitive Gate | Standard | Logic - Sensitive Gate | Logic - Sensitive Gate | Standard | Standard |
| Voltage - Off State | 600 V | 800 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - On State (It (RMS)) (Max) | 16 A | 16 A | 10 A | 12 A | 16 A | 16 A | 16 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 140A, 150A | 140A, 150A | 85A, 93A | 95A, 105A | 140A, 150A | 140A, 150A | 140A, 150A |
| Current - Gate Trigger (Igt) (Max) | 10 mA | 10 mA | 10 mA | 10 mA | 10 mA | 50 mA | 35 mA |
| Current - Hold (Ih) (Max) | 15 mA | 15 mA | 15 mA | 15 mA | 15 mA | 60 mA | 35 mA |
| Configuration | Single | Single | Single | Single | Single | Single | Single |
| Operating Temperature | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | TO-220F | TO-220F | TO-220F | TO-220F | TO-220AB | TO-220F | TO-220F |
