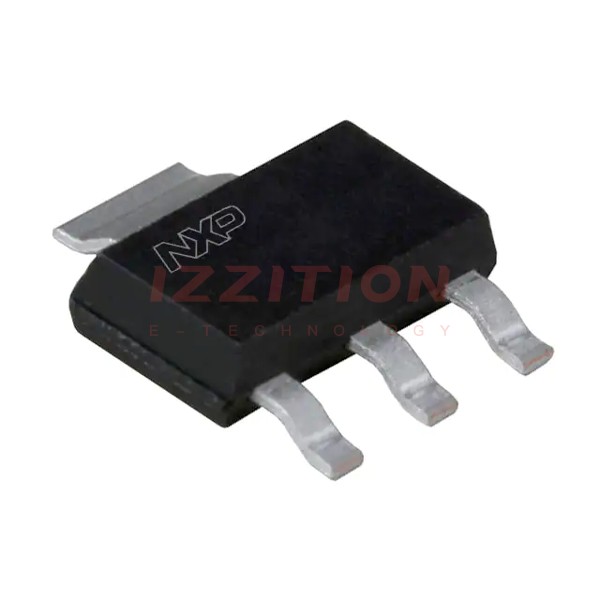

| Part Number | BTA204W-600E,135 | BTA204W-600F,135 | BTA204W-800E,135 | BTA204W-600B,135 | BTA204W-600C,135 | BTA204W-600D,135 |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors |
| Product Status | Active | Active | Active | Active | Active | Active |
| Triac Type | Logic - Sensitive Gate | Standard | Logic - Sensitive Gate | Standard | Standard | Logic - Sensitive Gate |
| Voltage - Off State | 600 V | 600 V | 800 V | 600 V | 600 V | 600 V |
| Current - On State (It (RMS)) (Max) | 1 A | 1 A | 1 A | 1 A | 1 A | 1 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 10A, 11A | 10A, 11A | 10A, 11A | 10A, 11A | 10A, 11A | 10A, 11A |
| Current - Gate Trigger (Igt) (Max) | 10 mA | 25 mA | 10 mA | 50 mA | 35 mA | 5 mA |
| Current - Hold (Ih) (Max) | 12 mA | 20 mA | 12 mA | 30 mA | 20 mA | 6 mA |
| Configuration | Single | Single | Single | Single | Single | Single |
| Operating Temperature | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | TO-261-4, TO-261AA | TO-261-4, TO-261AA | TO-261-4, TO-261AA | TO-261-4, TO-261AA | TO-261-4, TO-261AA | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223 | SC-73 | SC-73 | SC-73 | SC-73 | SC-73 |
