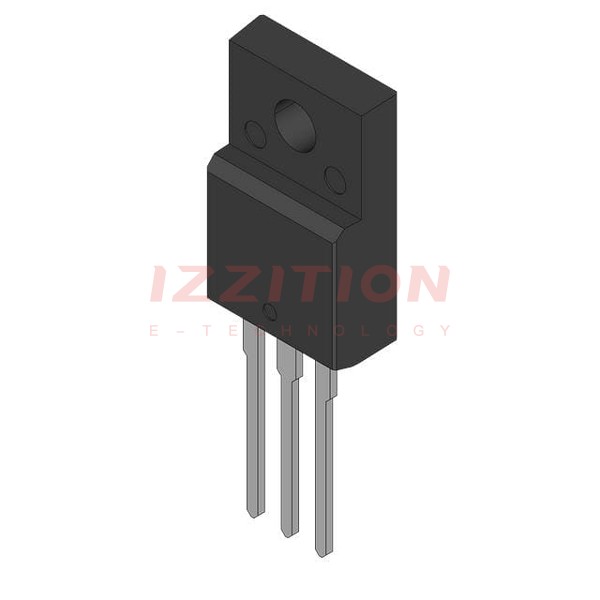

| Part Number | BT138X-600E,127 | BT138X-600G,127 | BT138Y-600E,127 | BT139X-600E,127 | BT138X-600F,127 | BT138X-800E,127 | BT136X-600E,127 | BT137X-600E,127 | BT138-600E,127 | BT138X-600,127 | BT138X-600D,127 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors |
| Product Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
| Triac Type | Logic - Sensitive Gate | Standard | Logic - Sensitive Gate | Logic - Sensitive Gate | Standard | Logic - Sensitive Gate | Logic - Sensitive Gate | Logic - Sensitive Gate | Logic - Sensitive Gate | Standard | Logic - Sensitive Gate |
| Voltage - Off State | 600 V | 600 V | 600 V | 600 V | 600 V | 800 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - On State (It (RMS)) (Max) | 12 A | 12 A | 12 A | 16 A | 12 A | 12 A | 4 A | 8 A | 12 A | 12 A | 12 A |
| Voltage - Gate Trigger (Vgt) (Max) | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V | 1.5 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 95A, 105A | 95A, 105A | 95A, 105A | 155A, 170A | 95A, 105A | 95A, 105A | 25A, 27A | 65A, 71A | 95A, 105A | 95A, 105A | 95A, 105A |
| Current - Gate Trigger (Igt) (Max) | 10 mA | 50 mA | 10 mA | 10 mA | 25 mA | 10 mA | 10 mA | 10 mA | 10 mA | 35 mA | 10 mA |
| Current - Hold (Ih) (Max) | 30 mA | 60 mA | 30 mA | 45 mA | 30 mA | 30 mA | 15 mA | 20 mA | 30 mA | 30 mA | 30 mA |
| Configuration | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single | Single |
| Operating Temperature | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) | 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab | TO-220-3 | TO-220-3 Full Pack, Isolated Tab | TO-220-3 Full Pack, Isolated Tab |
| Supplier Device Package | TO-220F | TO-220F | TO-220AB | TO-220F | TO-220F | TO-220F | TO-220F | TO-220F | TO-220AB | TO-220F | TO-220F |
