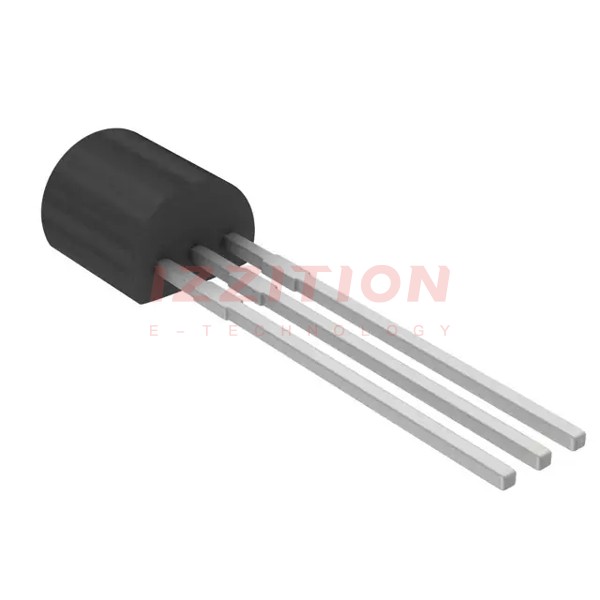

| Part Number | BT1308-400D,412 | BT1308-600D,412 | BT1306-400D,412 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Triac Type | Logic - Sensitive Gate | Logic - Sensitive Gate | Logic - Sensitive Gate |
| Voltage - Off State | 400 V | 600 V | 400 V |
| Current - On State (It (RMS)) (Max) | 800 mA | 800 mA | 600 mA |
| Voltage - Gate Trigger (Vgt) (Max) | 2 V | 2 V | 2 V |
| Current - Non Rep. Surge 50, 60Hz (Itsm) | 9A, 10A | 9A, 10A | 8A, 8.8A |
| Current - Gate Trigger (Igt) (Max) | 5 mA | 5 mA | 5 mA |
| Current - Hold (Ih) (Max) | 10 mA | 10 mA | 10 mA |
| Configuration | Single | Single | Single |
| Operating Temperature | 125°C (TJ) | 125°C (TJ) | -40°C ~ 125°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | TO-226-3, TO-92-3 (TO-226AA) Formed Leads | TO-226-3, TO-92-3 (TO-226AA) Formed Leads |
| Supplier Device Package | TO-92-3 | TO-92-3 | TO-92-3 |
