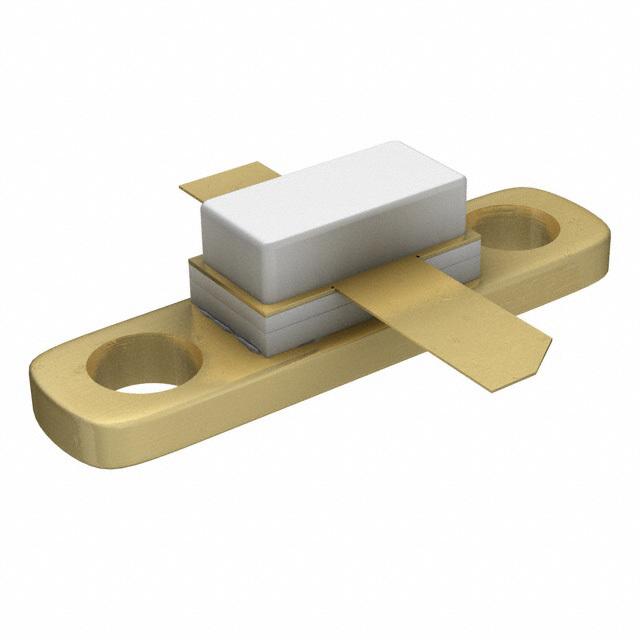

| Part Number | BLS2731-10,114 | BLS2731-50,114 | BLS2731-110,114 | BLS2731-20,114 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. | Ampleon USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Transistor Type | NPN | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 75V | 75V | 75V | 75V |
| Frequency - Transition | 3.1GHz | 3.1GHz | 3.1GHz | 3.1GHz |
| Noise Figure (dB Typ @ f) | - | - | - | - |
| Gain | 10dB | 9dB | 7dB | 10dB |
| Power - Max | 145W | 80W | 500W | 270W |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 40 @ 250mA, 5V | 40 @ 1.5A, 5V | 40 @ 3A, 5V | 40 @ 500mA, 5V |
| Current - Collector (Ic) (Max) | 1.5A | 6A | 12A | 3A |
| Operating Temperature | 200°C (TJ) | 200°C (TJ) | 200°C (TJ) | 200°C (TJ) |
| Mounting Type | Surface Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Package / Case | SOT-445C | SOT-422A | SOT-423A | SOT-445C |
| Supplier Device Package | CDFM2 | CDFM2 | CDFM2 | CDFM2 |
