Please send RFQ , we will respond immediately.
| Part Number | BGU8053,118 | BGU7053,118 | BGU8051,118 | BGU8052,118 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| Frequency | 2GHz ~ 4GHz | 2.3GHz ~ 2.8GHz | 300MHz ~ 1.5GHz | 1.5GHz ~ 2.5GHz |
| P1dB | 18dBm | 13.5dBm | 19dBm | 18dBm |
| Gain | 18.5dB | 18.5dB | 18.3dB | 18.5dB |
| Noise Figure | 0.56dB | 0.85dB | 0.43dB | 0.5dB |
| RF Type | GSM, LTE, W-CDMA | - | GSM, LTE, W-CDMA | GSM, LTE, W-CDMA |
| Voltage - Supply | 4.75V ~ 5.25V | 3V ~ 3.6V | 4.75V ~ 5.25V | 4.75V ~ 5.25V |
| Current - Supply | 48mA | 90mA | 48mA | 48mA |
| Test Frequency | 2.5GHz | 2.5GHz | 900MHz | 1.9GHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

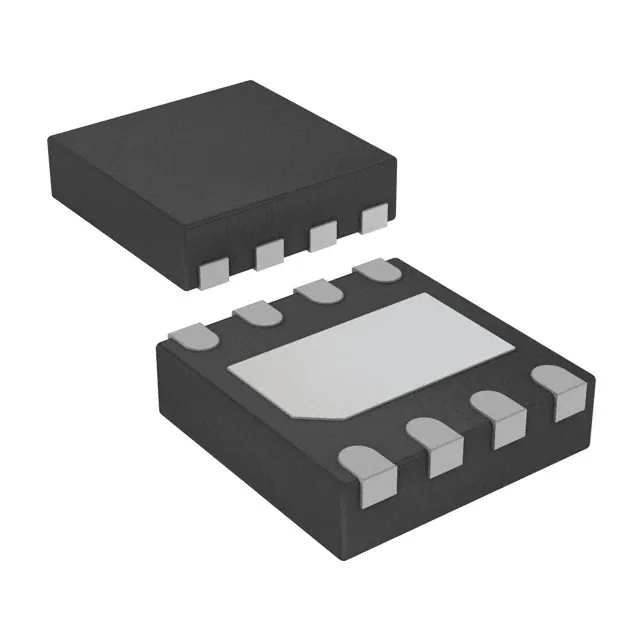

| Package / Case | 8-WFDFN Exposed Pad | 10-VFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad |
| Supplier Device Package | 8-HWSON (2x2) | 10-HVSON (3x3) | 8-HWSON (2x2) | 8-HWSON (2x2) |
