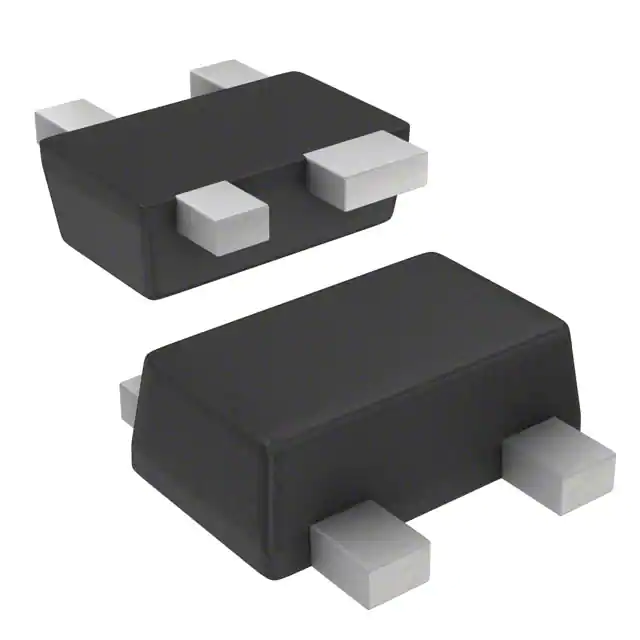

| Part Number | BFU690F,115 | BFU790F,115 | BFU610F,115 | BFU630F,115 | BFU660F,115 |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active | Active |
| Transistor Type | NPN | NPN | NPN | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 5.5V | 2.8V | 5.5V | 5.5V | 5.5V |
| Frequency - Transition | 18GHz | 25GHz | 15GHz | 21GHz | 21GHz |
| Noise Figure (dB Typ @ f) | 0.6dB ~ 0.7dG @ 1.5GHz ~ 2.4GHz | 0.4dB ~ 0.5dB @ 1.5GHz ~ 2.4GHz | 0.9dB ~ 1.7dB @ 1.5GHz ~ 5.8GHz | 0.75dB ~ 1.3dB @ 1.5GHz ~ 5.8GHz | 0.6dB ~ 1.2dB @ 1.5GHz ~ 5.8GHz |
| Gain | 15.5dB ~ 18.5dB | - | 13.5dB ~ 23.5dB | 13dB ~ 22.5dB | 12dB ~ 21dB |
| Power - Max | 230mW | 234mW | 136mW | 200mW | 225mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 90 @ 20mA, 2V | 235 @ 10mA, 2V | 90 @ 1mA, 2V | 90 @ 5mA, 2V | 90 @ 10mA, 2V |
| Current - Collector (Ic) (Max) | 100mA | 100mA | 10mA | 30mA | 60mA |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SOT-343F | SOT-343F | SOT-343F | SOT-343F | SOT-343F |
| Supplier Device Package | 4-DFP | 4-DFP | 4-DFP | 4-DFP | 4-DFP |
