Please send RFQ , we will respond immediately.
| Part Number | BFQ67W,115 | BFQ67W,135 |
|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete |
| Transistor Type | NPN | NPN |
| Voltage - Collector Emitter Breakdown (Max) | 10V | 10V |
| Frequency - Transition | 8GHz | 8GHz |
| Noise Figure (dB Typ @ f) | 1.3dB ~ 3dB @ 1GHz ~ 2GHz | 1.3dB ~ 3dB @ 1GHz ~ 2GHz |
| Gain | - | - |
| Power - Max | 300mW | 300mW |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 60 @ 15mA, 5V | 60 @ 15mA, 5V |
| Current - Collector (Ic) (Max) | 50mA | 50mA |
| Operating Temperature | 175°C (TJ) | 175°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

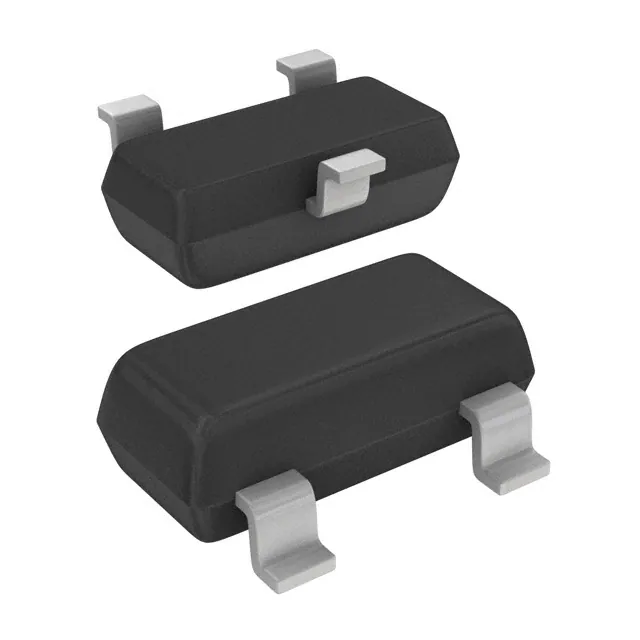

| Package / Case | SC-70, SOT-323 | SC-70, SOT-323 |
| Supplier Device Package | SC-70 | SC-70 |
