Please send RFQ , we will respond immediately.

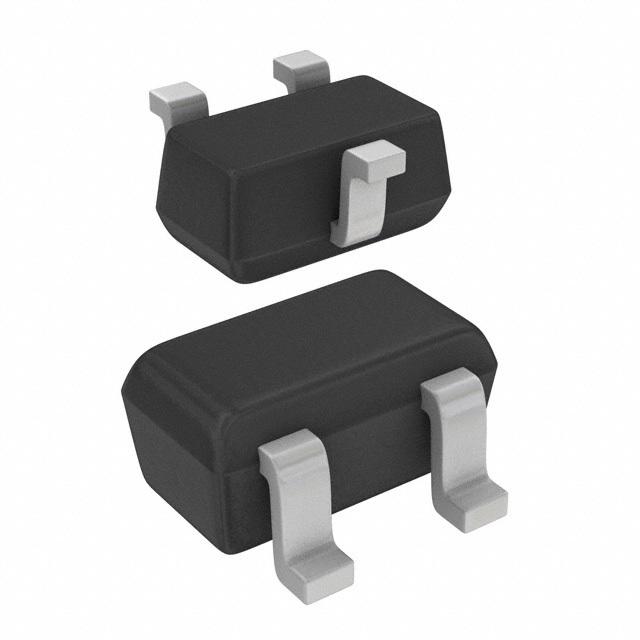

| Part Number | BC857BT,115 | BC857BW,115 | BC857CT,115 | BC857T,115 | BC857AT,115 |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Active | Obsolete | Obsolete | Obsolete |
| Transistor Type | PNP | PNP | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 45 V | 45 V | 45 V | 45 V | 45 V |
| Vce Saturation (Max) @ Ib, Ic | 400mV @ 5mA, 100mA | 600mV @ 5mA, 100mA | 400mV @ 5mA, 100mA | 400mV @ 5mA, 100mA | 400mV @ 5mA, 100mA |
| Current - Collector Cutoff (Max) | 15nA (ICBO) | 15nA (ICBO) | 15nA (ICBO) | 15nA (ICBO) | 15nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 220 @ 2mA, 5V | 220 @ 2mA, 5V | 420 @ 2mA, 5V | 125 @ 2mA, 5V | 125 @ 2mA, 5V |
| Power - Max | 150 mW | 200 mW | 150 mW | 150 mW | 150 mW |
| Frequency - Transition | 100MHz | 100MHz | 100MHz | 100MHz | 100MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-75, SOT-416 | SC-70, SOT-323 | SC-75, SOT-416 | SC-75, SOT-416 | SC-75, SOT-416 |
| Supplier Device Package | SC-75 | SOT-323 | SC-75 | SC-75 | SC-75 |
