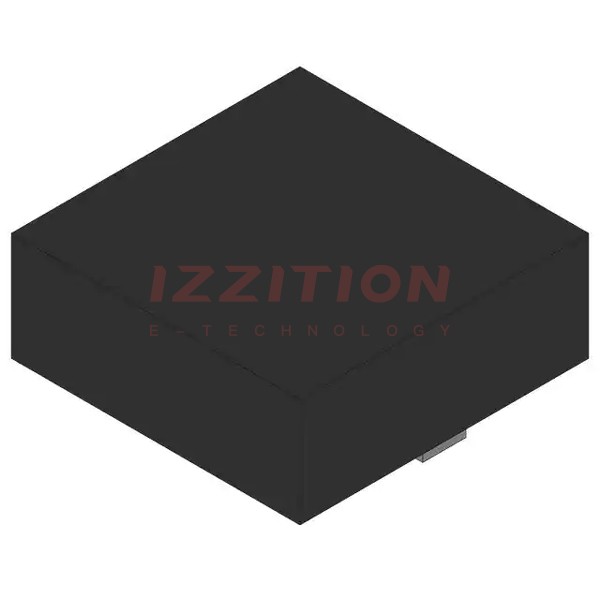

| Part Number | BC54-10PA,115 | BC54-16PA,115 | BC54-10PAS115 | BC51-10PA,115 | BC52-10PA,115 | BC53-10PA,115 |
|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP Semiconductors | NXP USA Inc. | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Active | Active |
| Transistor Type | NPN | NPN | - | PNP | PNP | PNP |
| Current - Collector (Ic) (Max) | 1 A | 1 A | - | 1 A | 1 A | 1 A |
| Voltage - Collector Emitter Breakdown (Max) | 45 V | 45 V | - | 45 V | 60 V | 80 V |
| Vce Saturation (Max) @ Ib, Ic | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | - | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA | 500mV @ 50mA, 500mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | - | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 63 @ 150mA, 2V | 63 @ 150mA, 2V | - | 63 @ 150mA, 2V | 63 @ 150mA, 2V | 63 @ 150mA, 2V |
| Power - Max | 420 mW | 420 mW | - | 420 mW | 420 mW | 420 mW |
| Frequency - Transition | 180MHz | 180MHz | - | 145MHz | 145MHz | 145MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | - | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 3-PowerUDFN | 3-PowerUDFN | - | 3-PowerUDFN | 3-PowerUDFN | 3-PowerUDFN |
| Supplier Device Package | 3-HUSON (2x2) | 3-HUSON (2x2) | - | 3-HUSON (2x2) | 3-HUSON (2x2) | 3-HUSON (2x2) |
