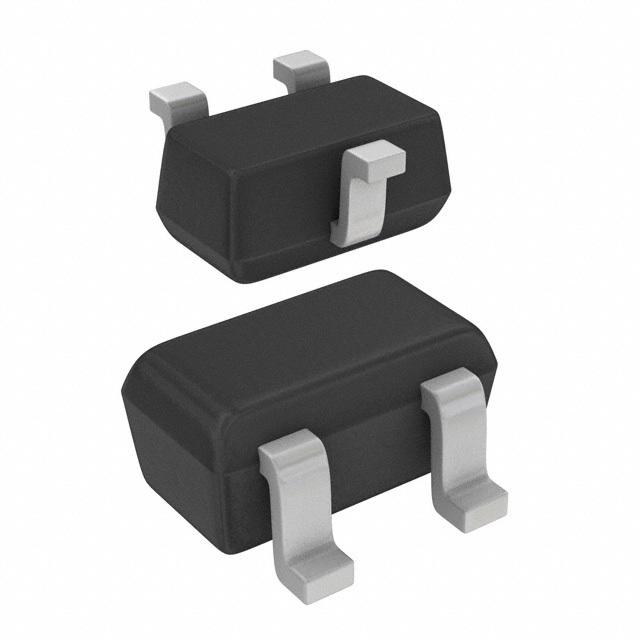

| Part Number | BAV70T,115 | BAV70W,115 | BAV70S,115 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Active |
| Diode Configuration | 1 Pair Common Cathode | 1 Pair Common Cathode | 2 Pair Common Cathode |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 100 V | 100 V | 100 V |
| Current - Average Rectified (Io) (per Diode) | 150mA (DC) | 175mA (DC) | 250mA (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.25 V @ 150 mA | 1.25 V @ 150 mA | 1.25 V @ 150 mA |
| Speed | Small Signal =< 200mA (Io), Any Speed | Small Signal =< 200mA (Io), Any Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 4 ns | 4 ns | 4 ns |
| Current - Reverse Leakage @ Vr | 500 nA @ 80 V | 500 nA @ 80 V | 500 nA @ 80 V |
| Operating Temperature - Junction | 150°C (Max) | 150°C (Max) | 150°C (Max) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-75, SOT-416 | SC-70, SOT-323 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-75 | SOT-323 | 6-TSSOP |
