Please send RFQ , we will respond immediately.

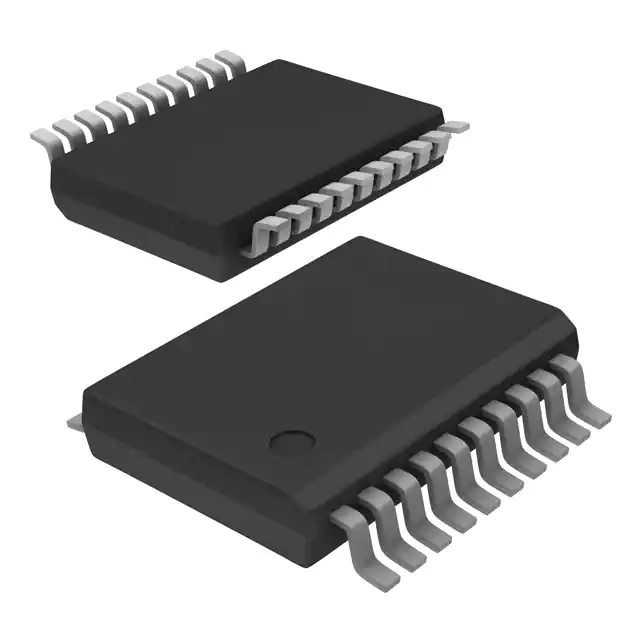

| Part Number | 74LVT574DB,112 | 74LVTH574DB,112 | 74LVT574DB,118 | 74LVT74DB,112 | 74LVT374DB,112 | 74LVT534DB,112 | 74LVT574D,112 |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Standard | Standard | Standard | Set(Preset) and Reset | Standard | Standard | Standard |
| Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Complementary | Tri-State, Non-Inverted | Tri-State, Inverted | Tri-State, Non-Inverted |
| Number of Elements | 1 | 1 | 1 | 2 | 1 | 1 | 1 |
| Number of Bits per Element | 8 | 8 | 8 | 1 | 8 | 8 | 8 |
| Clock Frequency | 150 MHz | 150 MHz | 150 MHz | 345 MHz | 200 MHz | 150 MHz | 150 MHz |
| Max Propagation Delay @ V, Max CL | 5.9ns @ 3.3V, 50pF | 5.9ns @ 3.3V, 50pF | 5.9ns @ 3.3V, 50pF | 5ns @ 3.3V, 50pF | 5.2ns @ 3.3V, 50pF | 4.9ns @ 3.3V, 50pF | 5.9ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 32mA, 64mA | 32mA, 64mA | 32mA, 64mA | 20mA, 32mA | 32mA, 64mA | 32mA, 64mA | 32mA, 64mA |
| Voltage - Supply | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Current - Quiescent (Iq) | 190 µA | 190 µA | 190 µA | 1 mA | 190 µA | 190 µA | 190 µA |
| Input Capacitance | 4 pF | 4 pF | 4 pF | 3 pF | 4 pF | 4 pF | 4 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 20-SSOP | 20-SSOP | 20-SSOP | 14-SSOP | 20-SSOP | 20-SSOP | 20-SO |
| Package / Case | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 14-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-SOIC (0.295", 7.50mm Width) |
