Please send RFQ , we will respond immediately.

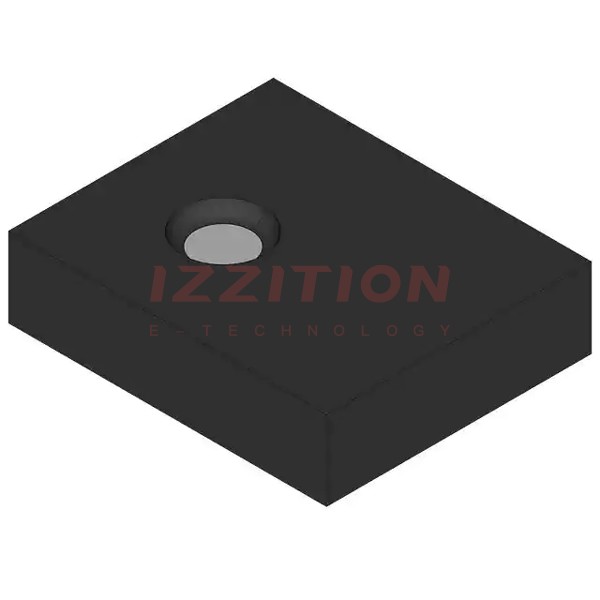

| Part Number | 74LVC3G06GN,115 | 74LVC3G06GS,115 | 74LVC3G06GT,115 | 74LVC3G04GN,115 | 74LVC3G06GF,115 |
|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Obsolete |
| Logic Type | Inverter | Inverter | Inverter | - | Inverter |
| Number of Circuits | 3 | 3 | 3 | - | 3 |
| Number of Inputs | 3 | 3 | 3 | - | 3 |
| Features | Open Drain | Open Drain | Open Drain | - | Open Drain |
| Voltage - Supply | 1.65V ~ 5.5V | 1.65V ~ 5.5V | 1.65V ~ 5.5V | - | 1.65V ~ 5.5V |
| Current - Quiescent (Max) | 4 µA | 4 µA | 4 µA | - | 4 µA |
| Current - Output High, Low | -, 32mA | -, 32mA | -, 32mA | - | -, 32mA |
| Logic Level - Low | 0.7V ~ 0.8V | 0.7V ~ 0.8V | 0.7V ~ 0.8V | - | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V | 1.7V ~ 2V | 1.7V ~ 2V | - | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 2.9ns @ 5V, 50pF | 2.9ns @ 5V, 50pF | 2.9ns @ 5V, 50pF | - | 2.9ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | - | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | - | Surface Mount |
| Supplier Device Package | 8-XSON (1.2x1) | 8-XSON (1.35x1) | 8-XSON, SOT833-1 (1.95x1) | - | 8-XSON (1.35x1) |
| Package / Case | 8-XFDFN | 8-XFDFN | 8-XFDFN | - | 8-XFDFN |
