74LVC2G3157GMX

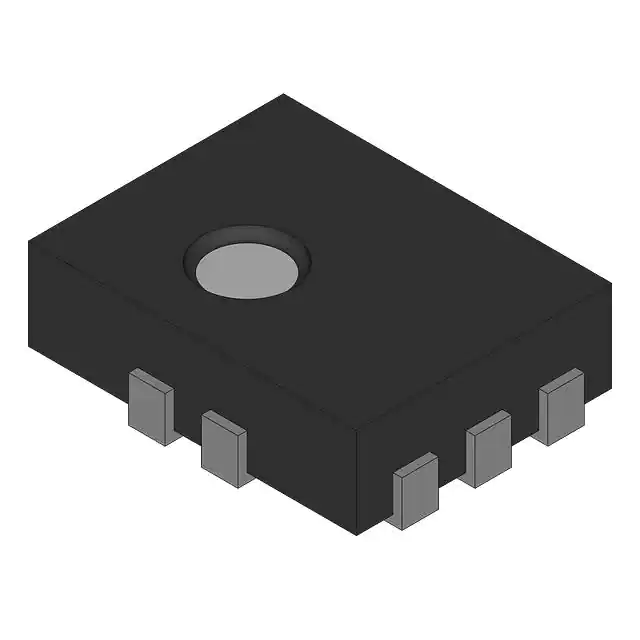

74LVC2G3157GMX Image
×
Favorite
Compare
Add to RFQ
Share:
NXP USA Inc. 74LVC2G3157GMX
Manufacturer No:
74LVC2G3157GMX
Manufacturer:
NXP USA Inc.
Package:
Bulk
Datasheet:
74LVC2G3157GMX Datasheet
ECAD Model:
-
Description:
74LVC2G3157 - DUAL SINGLE-POLE D
Delivery:
Payment:
Product Attributes
Switch Circuit:
SPDT
Multiplexer/Demultiplexer Circuit:
2:1
Number of Circuits:
2
On-State Resistance (Max):
15Ohm
Channel-to-Channel Matching (ΔRon):
-
Voltage - Supply, Single (V+):
1.65V ~ 5.5V
Voltage - Supply, Dual (V±):
-
Switch Time (Ton, Toff) (Max):
5.7ns, 3.8ns
-3db Bandwidth:
-
Charge Injection:
7.5pC
Channel Capacitance (CS(off), CD(off)):
6pF
Current - Leakage (IS(off)) (Max):
5µA
Crosstalk:
-54dB @ 10MHz
Operating Temperature:
-40°C ~ 125°C (TA)
Mounting Type:
Surface Mount
Package / Case:
10-XFQFN
Supplier Device Package:
10-XQFN (1.55x2)
0
Remaining
View Similar
In Stock
UnitPrice:
$0.14
Quantity:
6,642
Please send RFQ , we will respond immediately.
