Please send RFQ , we will respond immediately.

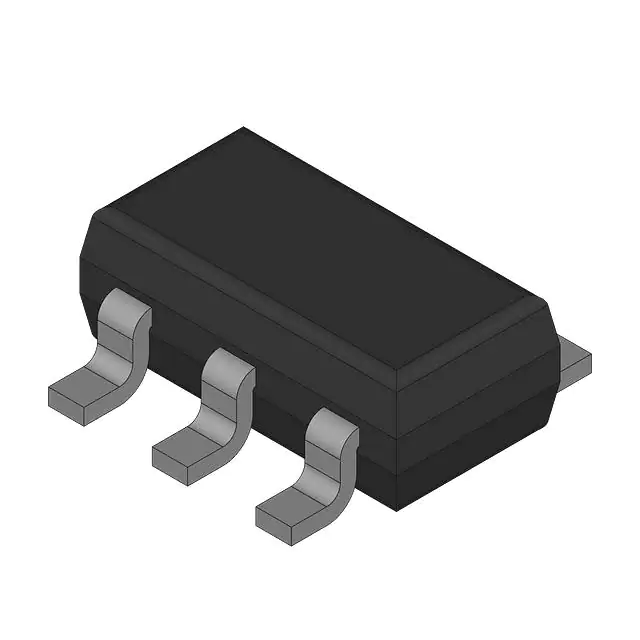

| Part Number | 74HC1G08GV-Q100125 | 74HC1G08GW-Q100125 | 74HC1G00GV-Q100125 | 74HC1G04GV-Q100125 |
|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Active | Active | Active | Active |
| Logic Type | AND Gate | AND Gate | NAND Gate | Inverter |
| Number of Circuits | 1 | 1 | 1 | 1 |
| Number of Inputs | 2 | 2 | 2 | 1 |
| Features | - | - | - | - |
| Voltage - Supply | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V | 2V ~ 6V |
| Current - Quiescent (Max) | 20 µA | 20 µA | 20 µA | 20 µA |
| Current - Output High, Low | 2.6mA, 2.6mA | 2.6mA, 2.6mA | 2.6mA, 2.6mA | 2.6mA, 2.6mA |
| Logic Level - Low | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 23ns @ 6V, 50pF | 23ns @ 6V, 50pF | 23ns @ 6V, 50pF | 23ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 5-TSOP | 5-TSSOP | 5-TSOP | 5-TSOP |
| Package / Case | SC-74A, SOT-753 | 5-TSSOP, SC-70-5, SOT-353 | SC-74A, SOT-753 | SC-74A, SOT-753 |
