Please send RFQ , we will respond immediately.

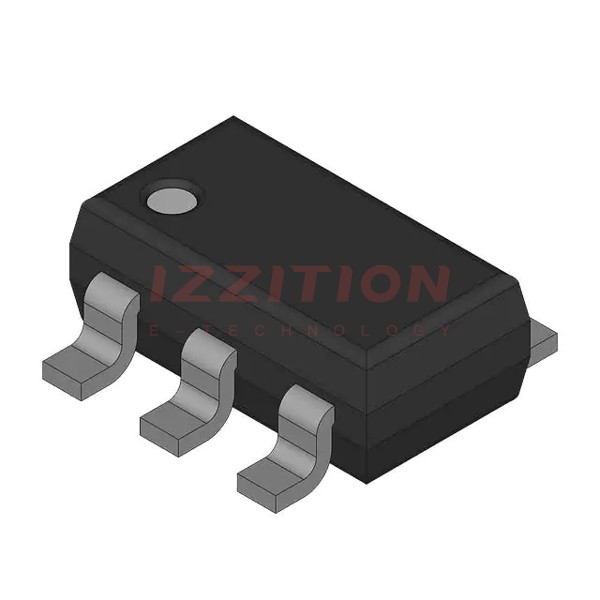

| Part Number | 74AUP2G32GF,115 | 74AUP2G32GT,115 | 74AUP2G32GS,115 | 74AUP2G32GN,115 | 74AUP2G38GF,115 | 74AUP2G02GF,115 | 74AUP2G132GF,115 |
|---|---|---|---|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Active | Active | Active | Active | Obsolete | Active | Active |
| Logic Type | OR Gate | OR Gate | OR Gate | OR Gate | NAND Gate | NOR Gate | NAND Gate |
| Number of Circuits | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of Inputs | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Features | - | - | - | - | Open Drain | - | Schmitt Trigger |
| Voltage - Supply | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V | 0.8V ~ 3.6V |
| Current - Quiescent (Max) | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA | 500 nA |
| Current - Output High, Low | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | 4mA, 4mA | -, 4mA | 4mA, 4mA | 4mA, 4mA |
| Logic Level - Low | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.7V ~ 0.9V | 0.1V ~ 0.88V |
| Logic Level - High | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 1.6V ~ 2V | 0.6V ~ 2.29V |
| Max Propagation Delay @ V, Max CL | 6.4ns @ 3.3V, 30pF | 6.4ns @ 3.3V, 30pF | 6.4ns @ 3.3V, 30pF | 6.4ns @ 3.3V, 30pF | 12.7ns @ 3.3V, 30pF | 6.4ns @ 3.3V, 30pF | 7.8ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-XSON (1.35x1) | 8-XSON, SOT833-1 (1.95x1) | 8-XSON (1.35x1) | 8-XSON (1.2x1) | 8-XSON (1.35x1) | 8-XSON (1.35x1) | 8-XSON (1.35x1) |
| Package / Case | 8-XFDFN | 8-XFDFN | 8-XFDFN | 8-XFDFN | 8-XFDFN | 8-XFDFN | 8-XFDFN |
