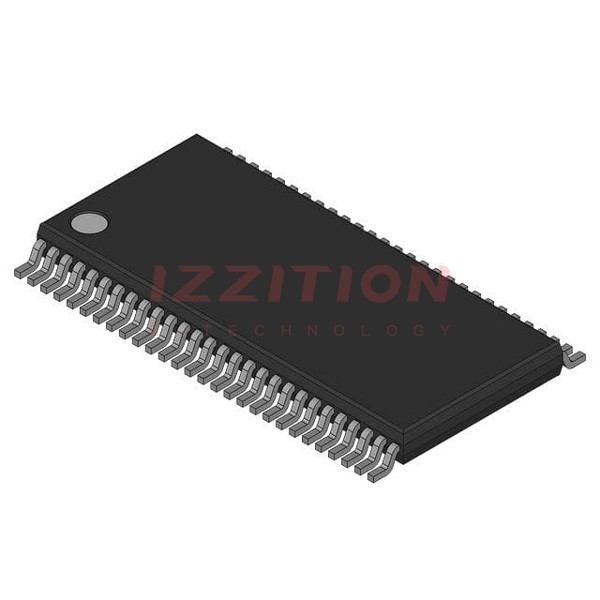

| Part Number | 74ALVT16821DGG,118 | 74ALVT16823DGG,118 | 74ALVT16821DGG,112 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Obsolete |
| Function | Standard | Master Reset | Standard |
| Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 2 | 2 | 2 |
| Number of Bits per Element | 10 | 9 | 10 |
| Clock Frequency | 150 MHz | 250 MHz | 150 MHz |
| Max Propagation Delay @ V, Max CL | 3.2ns @ 3.3V, 50pF | 3.1ns @ 3.3V, 50pF | 3.2ns @ 3.3V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 8mA, 24mA; 32mA, 64mA | 8mA, 24mA; 32mA, 64mA | 8mA, 24mA; 32mA, 64mA |
| Voltage - Supply | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V | 2.3V ~ 2.7V, 3V ~ 3.6V |
| Current - Quiescent (Iq) | 70 µA | 100 µA | 70 µA |
| Input Capacitance | 3 pF | 3 pF | 3 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 56-TSSOP | 56-TSSOP | 56-TSSOP |
| Package / Case | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) | 56-TFSOP (0.240", 6.10mm Width) |
