Please send RFQ , we will respond immediately.

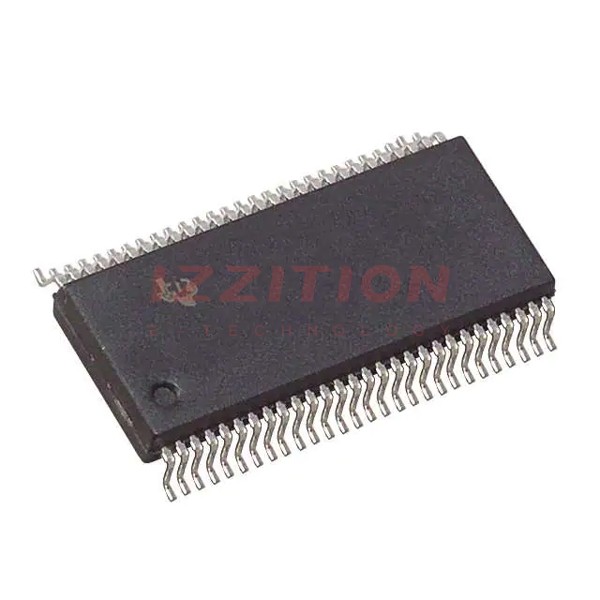

| Part Number | 74ABT16821ADL,512 | 74ABT16821ADL,518 | 74ABT16823ADL,512 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | NXP USA Inc. | NXP USA Inc. |
| Product Status | Obsolete | Obsolete | Obsolete |
| Function | Standard | Standard | Master Reset |
| Type | D-Type | D-Type | D-Type |
| Output Type | Tri-State, Non-Inverted | Tri-State, Non-Inverted | Tri-State, Non-Inverted |
| Number of Elements | 2 | 2 | 2 |
| Number of Bits per Element | 10 | 10 | 9 |
| Clock Frequency | 250 MHz | 250 MHz | 190 MHz |
| Max Propagation Delay @ V, Max CL | 3.3ns @ 5V, 50pF | 3.3ns @ 5V, 50pF | 3.2ns @ 5V, 50pF |
| Trigger Type | Positive Edge | Positive Edge | Positive Edge |
| Current - Output High, Low | 32mA, 64mA | 32mA, 64mA | 32mA, 64mA |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Current - Quiescent (Iq) | 1 mA | 1 mA | 1 mA |
| Input Capacitance | 3 pF | 3 pF | 4 pF |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 56-SSOP | 56-SSOP | 56-SSOP |
| Package / Case | 56-BSSOP (0.295", 7.50mm Width) | 56-BSSOP (0.295", 7.50mm Width) | 56-BSSOP (0.295", 7.50mm Width) |
