| Part Number | 2PC4617SM,315 | 2PC4617QM,315 | 2PC4617RM,315 |
|---|---|---|---|
| Manufacturer | NXP USA Inc. | Nexperia USA Inc. | Nexperia USA Inc. |
| Product Status | Obsolete | Active | Active |
| Transistor Type | NPN | NPN | NPN |
| Current - Collector (Ic) (Max) | 100 mA | 100 mA | 100 mA |
| Voltage - Collector Emitter Breakdown (Max) | 50 V | 50 V | 50 V |
| Vce Saturation (Max) @ Ib, Ic | 200mV @ 5mA, 50mA | 200mV @ 5mA, 50mA | 200mV @ 5mA, 50mA |
| Current - Collector Cutoff (Max) | 100nA (ICBO) | 100nA (ICBO) | 100nA (ICBO) |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 270 @ 1mA, 6V | 120 @ 1mA, 6V | 180 @ 1mA, 6V |
| Power - Max | 430 mW | 430 mW | 430 mW |
| Frequency - Transition | 100MHz | 100MHz | 100MHz |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

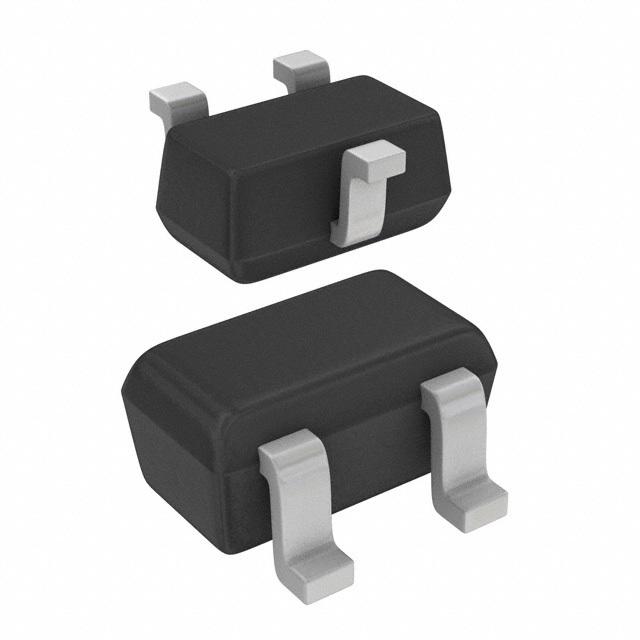

| Package / Case | SC-75, SOT-416 | SC-101, SOT-883 | SC-101, SOT-883 |
| Supplier Device Package | SC-75 | SOT-883 | SOT-883 |
